2002 Acura 3.2CL BaseFACTORY OEM SERVICE PROCEDURE
Automatic System Service Specifications
AUTOMATIC SYSTEM SPECIFICATIONS
| Application | Specification | |||||
|---|---|---|---|---|---|---|
| Compressor Type | Swash Plate 10-Cyl. (DENSO) | |||||
| Refrigerant Oil (1) | ||||||
| Compressor Oil Capacity | 5.3 ozs. | |||||
| Condenser Oil Capacity | .85 ozs. | |||||
| Evaporator Oil Capacity | 1.3 ozs. | |||||
| Line & Hose Capacity | .33 ozs. | |||||
| Receiver/Drier Oil Capacity | .33 ozs. | |||||
| Refrigerant (R-134a) Capacity | 21-23 ozs. (600-650 g) | |||||

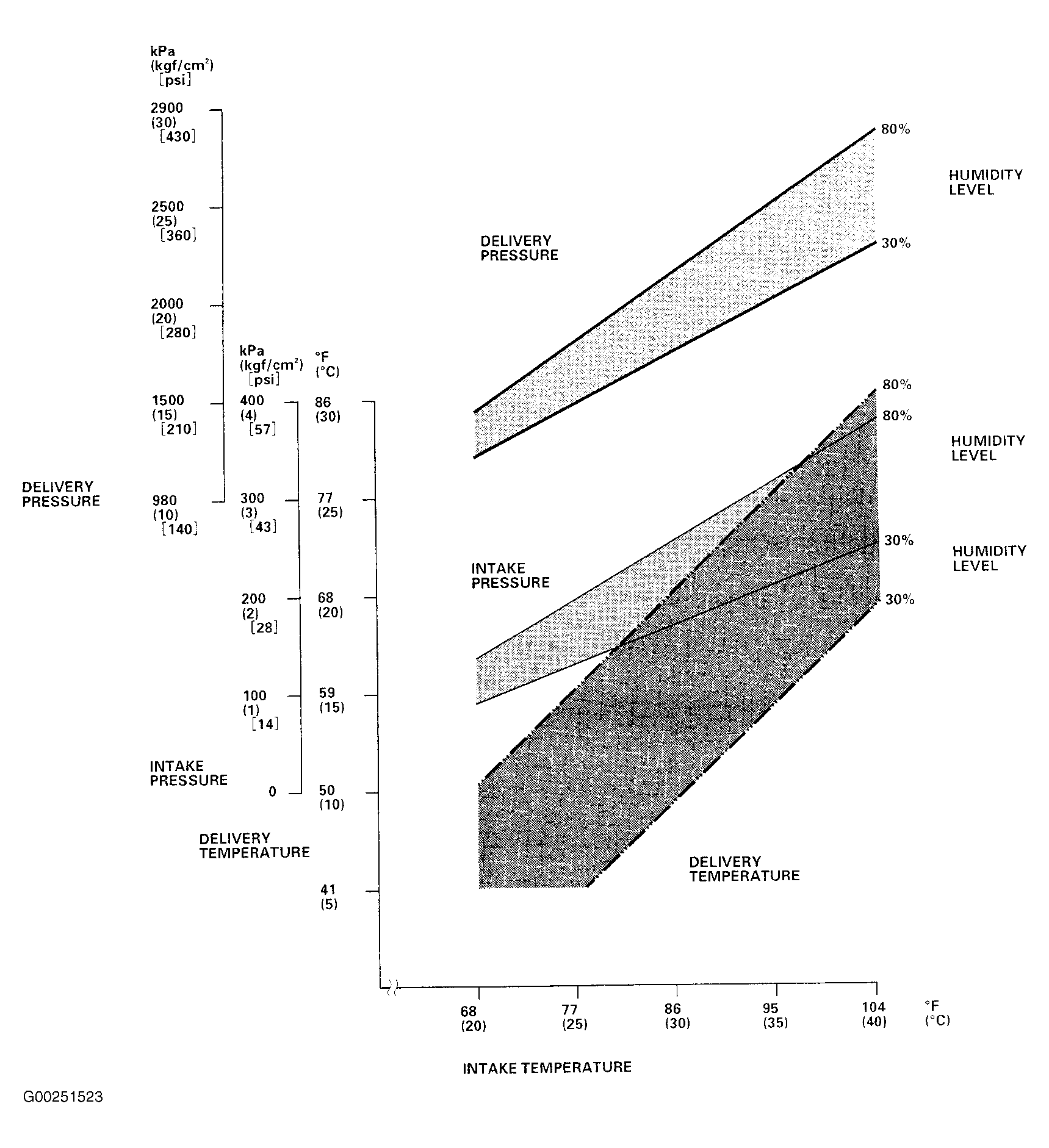

| System Operating Pressures | (2) | |||||
|
||||||
