2002 Acura 1.7EL StandardFACTORY OEM SERVICE PROCEDURE

Throttle Cable Removal/Installation

  1. Fully open the throttle valve, then remove the throttle cable (A) from the throttle link (B).

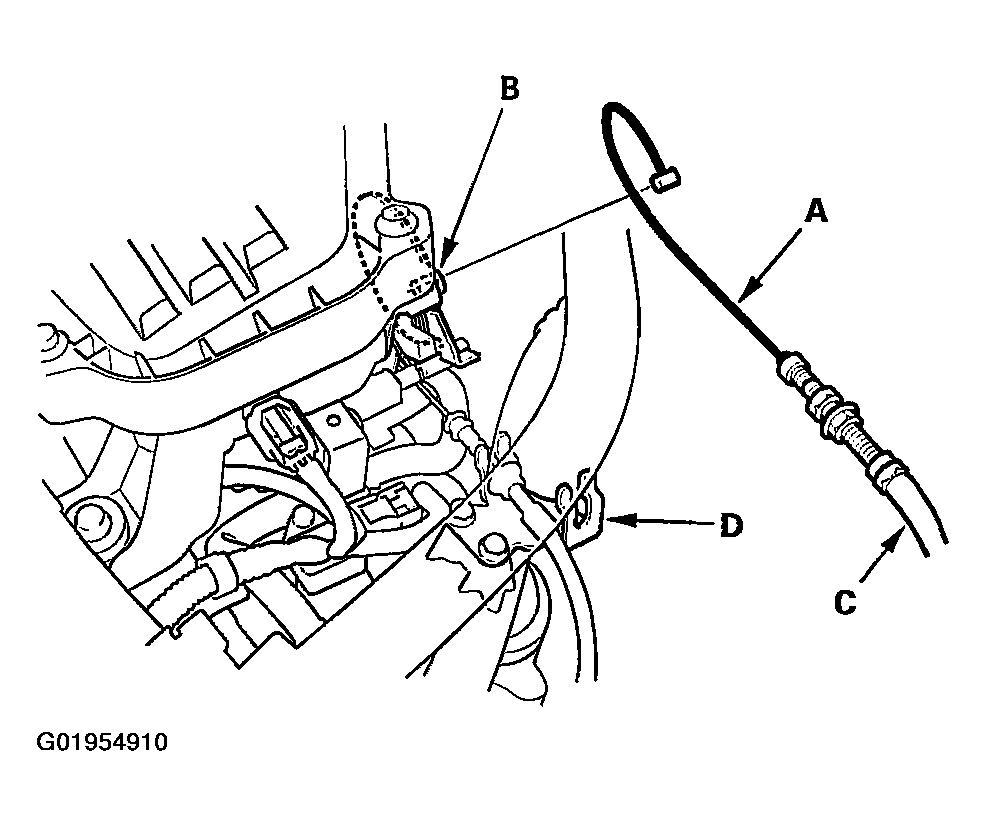

    Fig 1: Removing Throttle Cable From Throttle Link
    G01954910
  2. Remove the cable housing (C) from the cable bracket (D).
  3. Remove the throttle cable (A) from the accelerator pedal (B).

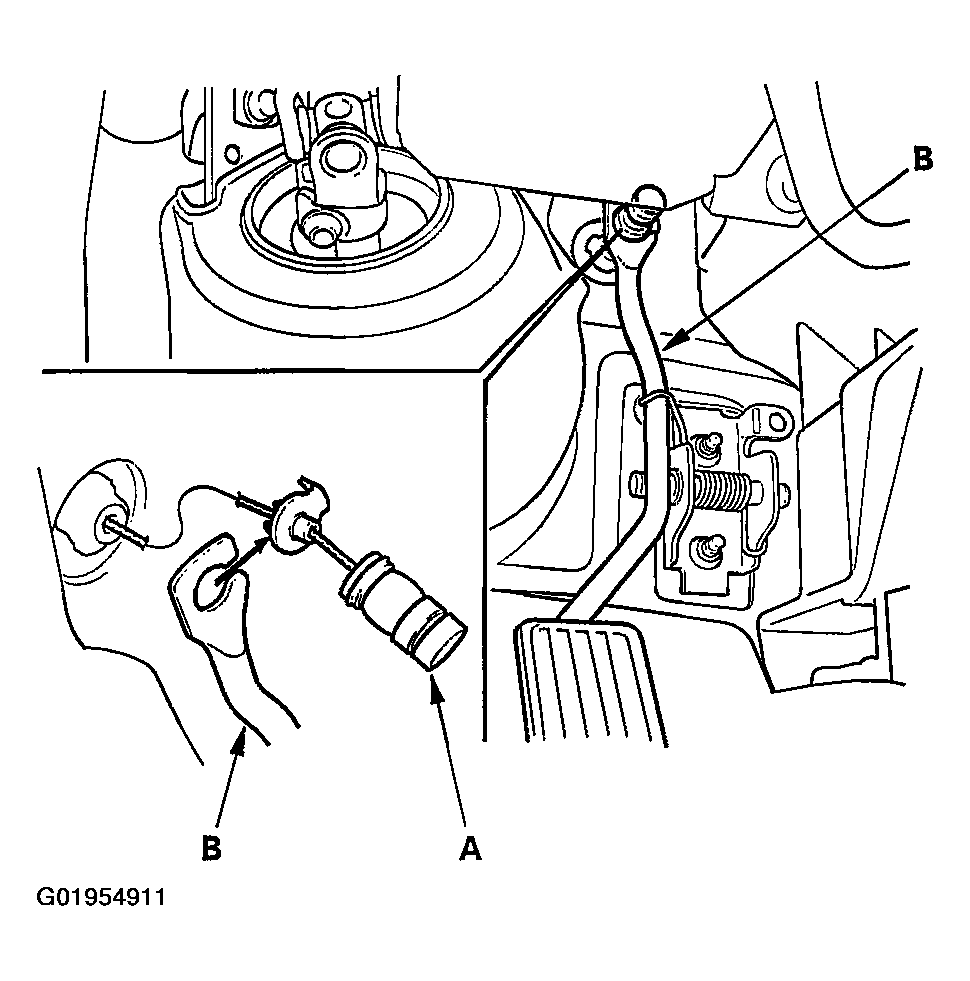

    Fig 2: Removing Throttle Cable From Accelerator Pedal
    G01954911
  4. Install in the reverse order of removal.
  5. After installing, start the engine. Hold the engine at 3,000 RPM with no load (in Park or neutral) until the radiator fan comes on, then let it idle.
  6. Hold the cable, removing all slack from the cable.
  7. Set the locknut on the cable bracket (A). Adjust the adjusting nut (B) so that its free play is 0 mm.

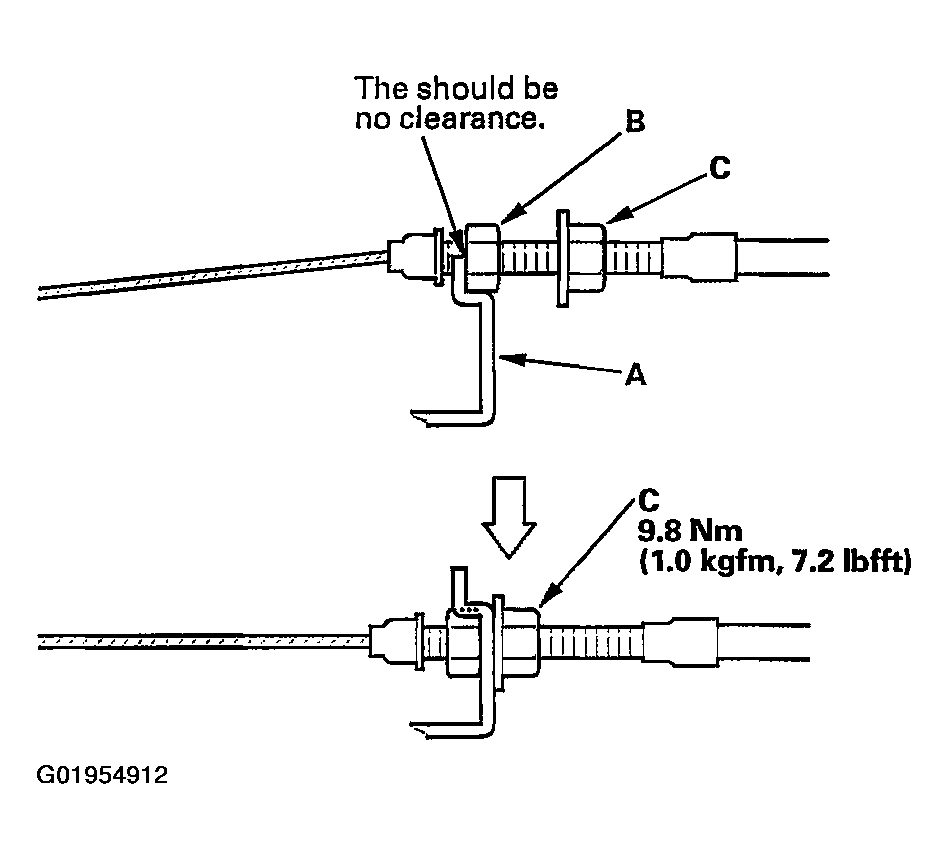

    Fig 3: Setting Locknut On Cable Bracket
    G01954912
  8. Remove the cable from the throttle bracket (A). Reset the adjusting nut (B) and tighten the locknut (C).
  9. With the cable properly adjusted, check the throttle valve to be sure it opens fully when you push the accelerator pedal to the floor. Also check the throttle valve to be sure it returns to the idle position whenever you release the accelerator pedal.
