Remove center console. Disconnect A/T gear position switch harness connector. Note connector terminal identification. See Fig 1 .
Using ohmmeter, check continuity between specified terminal(s) with shift lever in indicated positions. See A/T GEAR POSITION SWITCH CONTINUITY (INTEGRA) table.
NOTE: Check continuity while moving shift lever back and forth in free play area of each gear position. DO NOT touch push button on shift lever when checking continuity.
If continuity is not as specified, adjust A/T gear position switch. See appropriate AUTOMATIC TRANSMISSIONS article. If correct continuity cannot be obtained by adjusting A/T gear position switch, replace switch assembly.

A/T GEAR POSITION SWITCH CONTINUITY (INTEGRA)

Application	Shift Lever Position	Continuity Between Terminals
With Cruise Control
Gear Position Switch	P	A & L
R		A & M
N		A & N
D4		I, A & G
D		I, A & F
2		I, A & E
1		A & B
Back-Up Light Switch	R	C & D
Neutral Position Switch	P	J & K
N		J & K
Without Cruise Control
Gear Position Switch	P	A & L
R		A & M
N		A & N
D4		A & G
D		A & F
2		A & E
1		A & B
Back-Up Light Switch	R	C & D
Neutral Position Switch	P	J & K
N		J & K

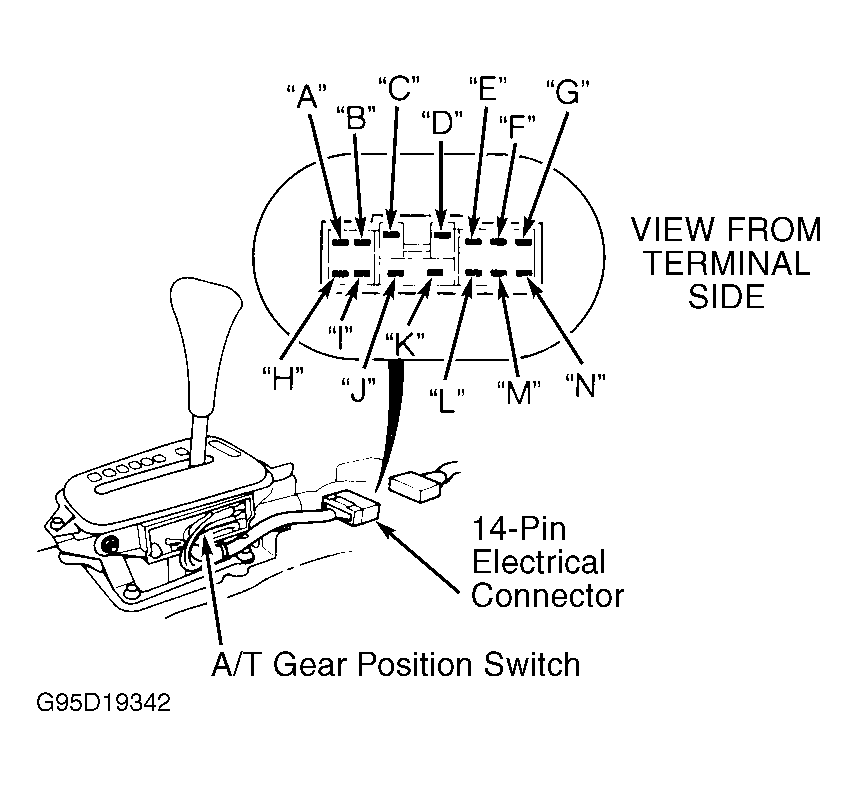

Fig 1: Identifying A/T Gear Position Switch Terminals (Integra)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
