2000 Acura Integra GS-R, 2D CoupeFACTORY OEM SERVICE PROCEDURE
Rectifier Diodes

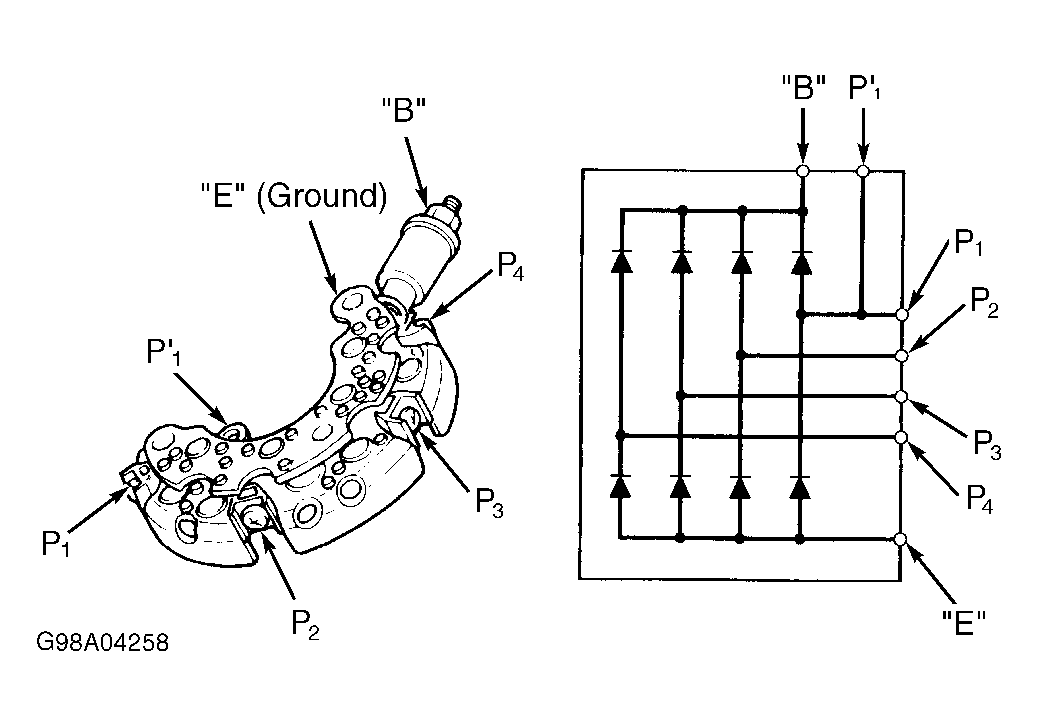

- Check continuity between rectifier assembly terminal "B" and terminals P1-P5, and between terminals "E" and P1-P5. See Fig 1 . Note ohmmeter reading.
- Reverse leads, and repeat test. Continuity should exist only in one direction. If continuity is not as specified, replace rectifier assembly.
