Passenger Window Switch

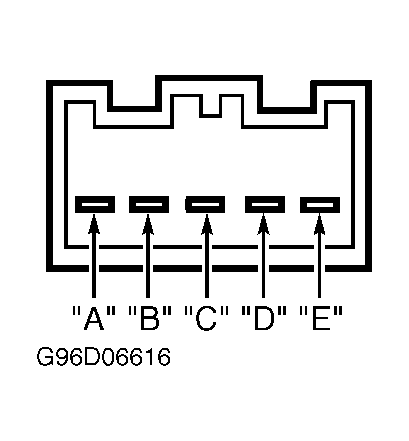

Remove passenger window switch. See WINDOW SWITCH under REMOVAL & INSTALLATION. Disconnect 5-pin connector. Check for continuity between specified switch terminals with switch in each position. If continuity is not as specified, replace switch. See Fig 1 . See PASSENGER POWER WINDOW SWITCH table.
| Window Switch Position | Continuity Between Terminals | |
|---|---|---|
| Front | ||
| Off | A & B; D & E | |
| Up | B & C; D & E | |
| Down | A & B; C & D | |
| Rear | ||
| Off | A & B; C & E | |
| Up | A & B; D & E | |
| Down | B & D; C & E | |
