Power Mirror Switch

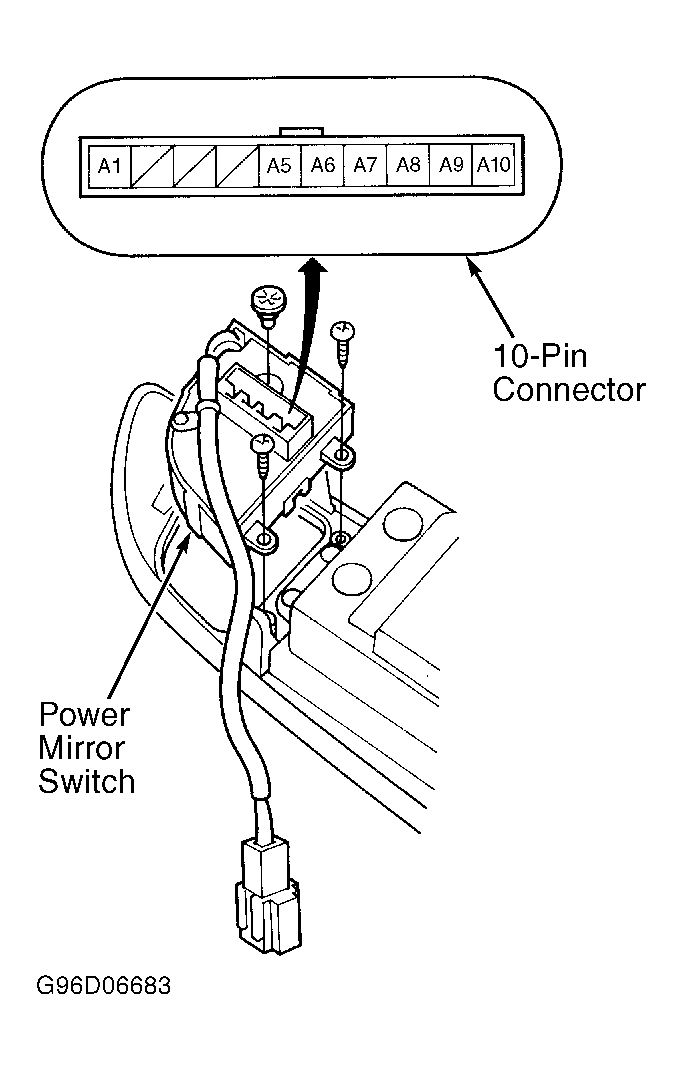

Remove driver's door panel. See DOOR PANEL under REMOVAL & INSTALLATION. Disconnect power mirror 10-pin connector. See Fig 1 . Using an ohmmeter, verify continuity is as specified in POWER MIRROR SWITCH CONTINUITY table. If mirror switch fails any test, replace faulty mirror switch.
| Position | Check Continuity Between Terminals | |
|---|---|---|
| Right | ||
| Off | A5, A7, A8 & A9 | |
| Up | A5 & A6; A7, A8 & A9 | |
| Down | A5 & A7; A6, A8 & A9 | |
| Left | A7 & A8; A5, A6 & A9 | |
| Right | A6 & A8; A5, A7 & A9 | |
| Left | ||
| Off | A1, A5, A7 & A10 | |
| Up | A5 & A6; A1, A7 & A10 | |
| Down | A5 & A7; A1, A6 & A10 | |
| Left | A1 & A7; A5, A6 & A10 | |
| Right | A1 & A6; A5, A7 & A10 | |
