Power Mirror

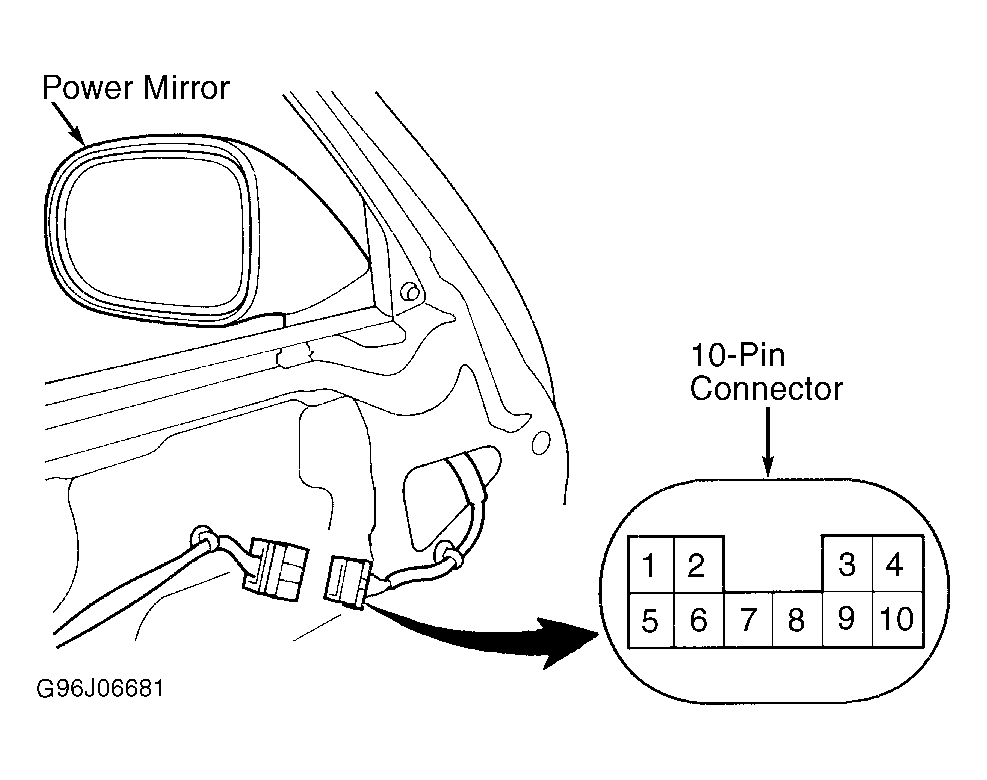

Remove door panel. See DOOR PANEL under REMOVAL & INSTALLATION. Disconnect power mirror 10-pin connector. See Fig 1 . Connect battery power to power mirror as specified in POWER MIRROR table. If power mirror fails to function as specified, replace faulty power mirror. See POWER MIRROR under REMOVAL & INSTALLATION.
| Mirror Position | Connect Terminals No. To B+ & Ground |
|---|---|
| Tilt Up | 10 & 9 |
| Tilt Down | 9 & 10 |
| Swing Left | 9 & 8 |
| Swing Right | 8 & 9 |
