Driver's Power Seat Switch

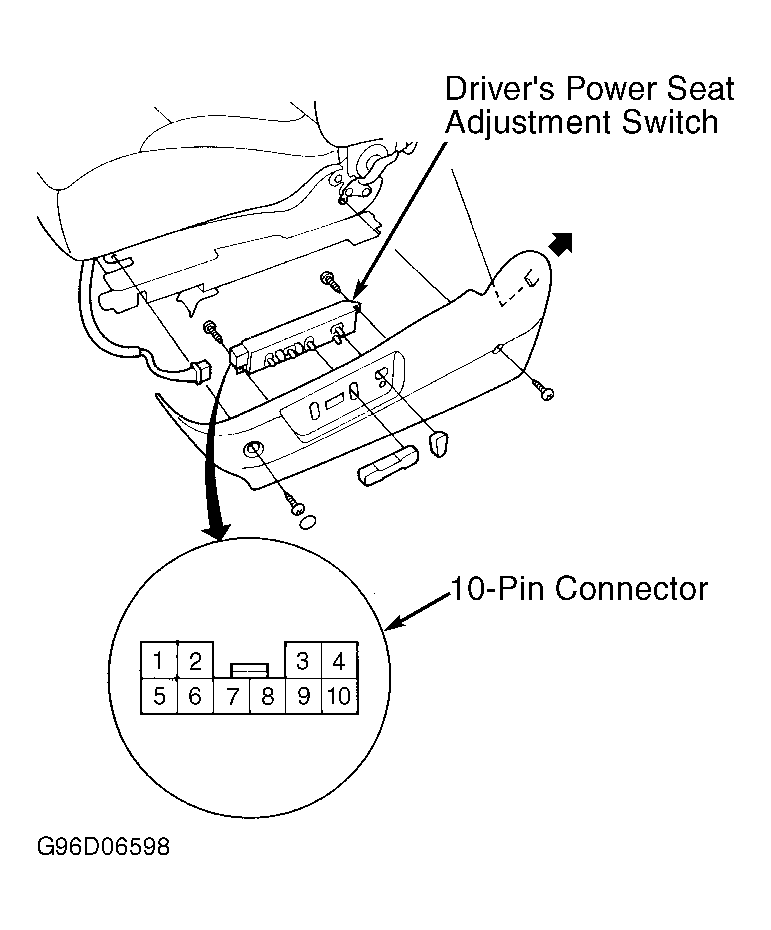

Remove driver's power seat switch. See DRIVER'S POWER SEAT SWITCH under REMOVAL & INSTALLATION. Disconnect driver's power seat switch 10-pin connector. See Fig 1 . Using an ohmmeter, verify continuity is as specified in DRIVER'S POWER SEAT SWITCH CONTINUITY table. If switch fails any test, replace faulty switch.
| Position | Continuity Between Terminals No. | |
|---|---|---|
| Slide Switch | ||
| Forward | 6 & 8 | |
| Backward | 6 & 9 | |
| Recline Switch | ||
| Forward | 1 & 5 | |
| Backward | 2 & 5 | |
| Front Up-Down Switch | ||
| Up | 6 & 10 | |
| Down | 6 & 7 | |
| Rear Up-Down Switch | ||
| Up | 3 & 5 | |
| Down | 4 & 5 | |
