2000 Acura 3.2TLFACTORY OEM SERVICE PROCEDURE
Shift Lock Solenoid Replacement
- Remove the console panel. See Console Panel .
- Disconnect the shift lock solenoid 2P connector.

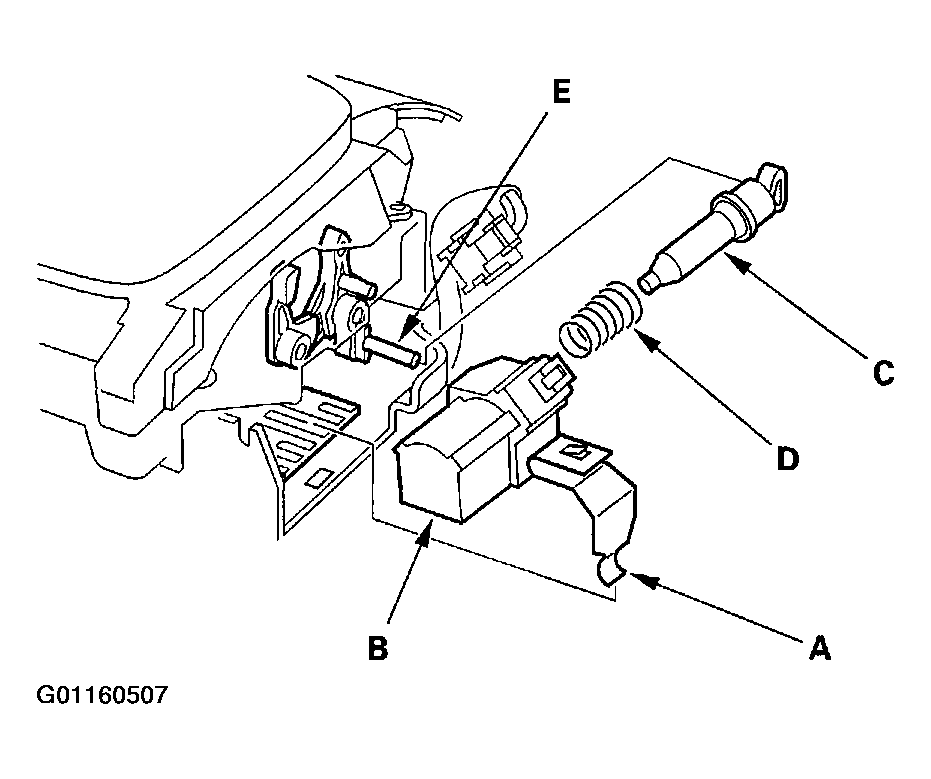

- Pry the shift lock solenoid clamp (A) with a screwdriver, then remove the shift lock solenoid (B).
- Install the shift lock solenoid plunger (C) and plunger spring (D) in the new shift lock solenoid.
- Install the shift lock solenoid by aligning the joint of the shift lock solenoid with the tip of the shift lock stop (E).
- Secure the shift lock solenoid with the clamp, then connect the shift lock solenoid connector.
