System Control Unit Input Tests

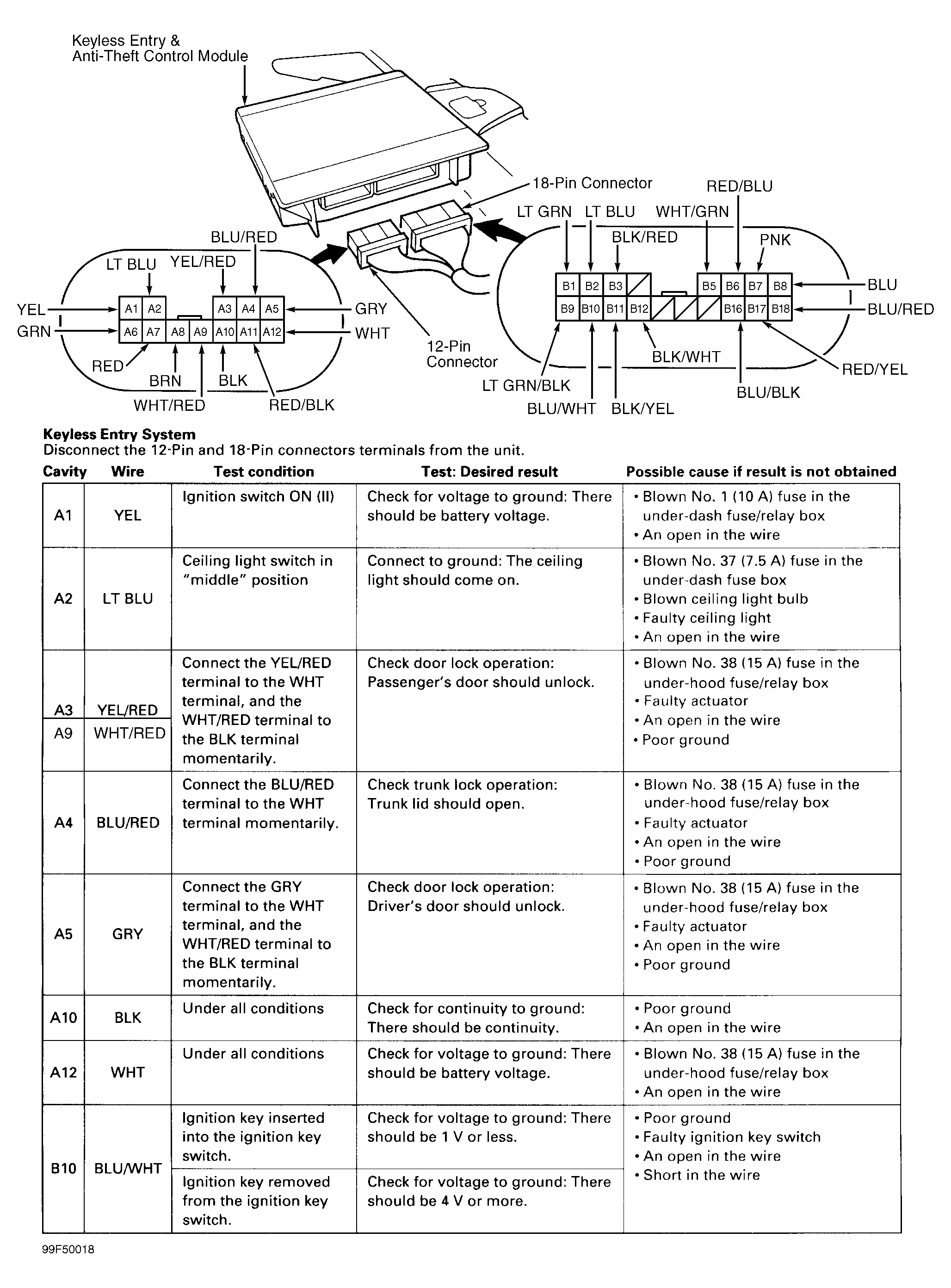

Remove passenger's seat. Disconnect 12-pin and 18-pin connectors from keyless entry and anti-theft control units. Inspect connectors and terminals. Check for bent, loose or corroded terminals. Perform control unit input tests. See Fig 1 through Fig 4 . If control unit input test results are as specified, replace faulty security control unit.
