Power Seat Control Unit Input Test

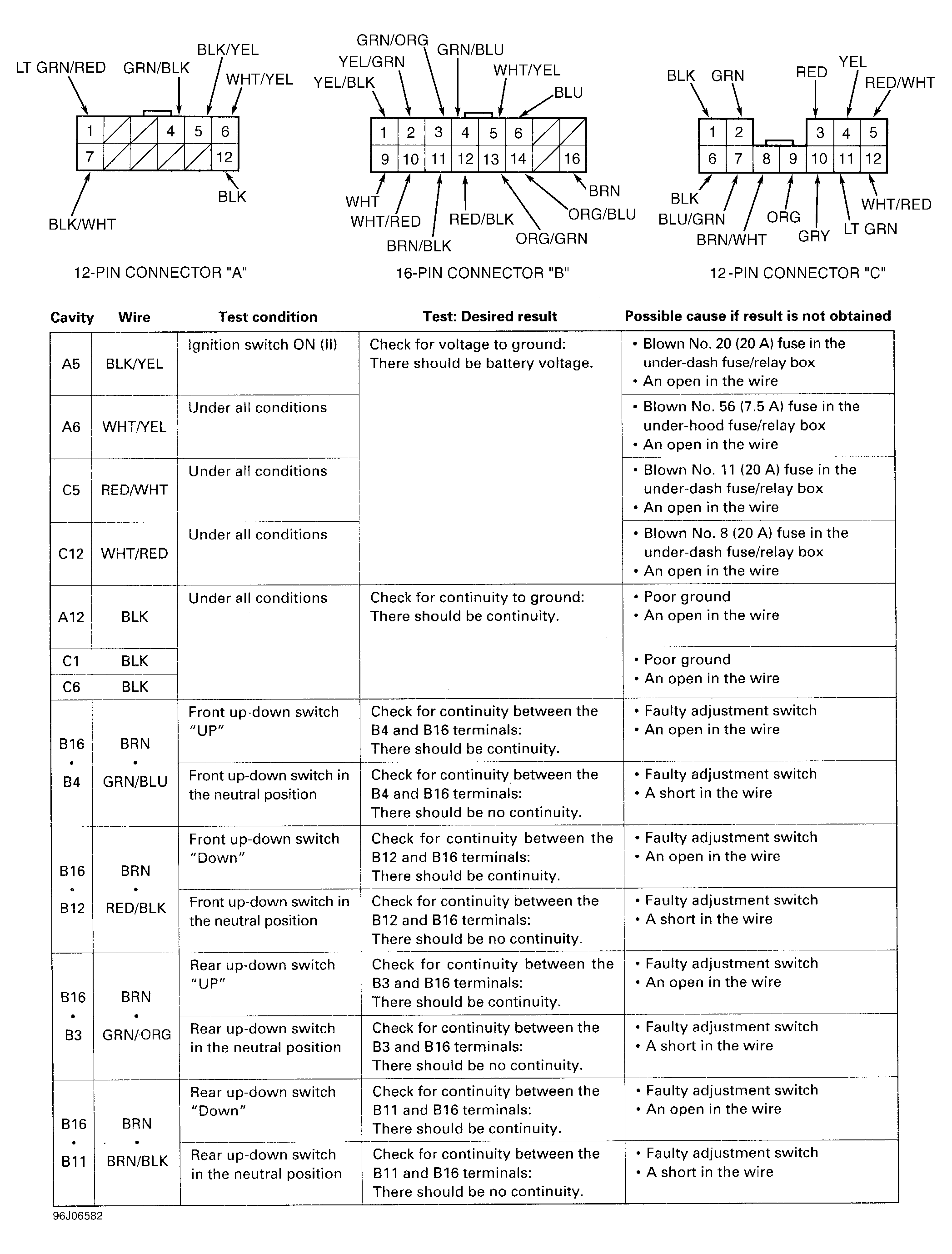

Power seat control unit is located under front center of driver's seat. See FRONT SEAT under REMOVAL & INSTALLATION. Disconnect power seat control unit connectors and check for bent, loose or corroded terminals and repair as required. See Fig 1-Fig 3 .
