Abs Control Unit: Installation

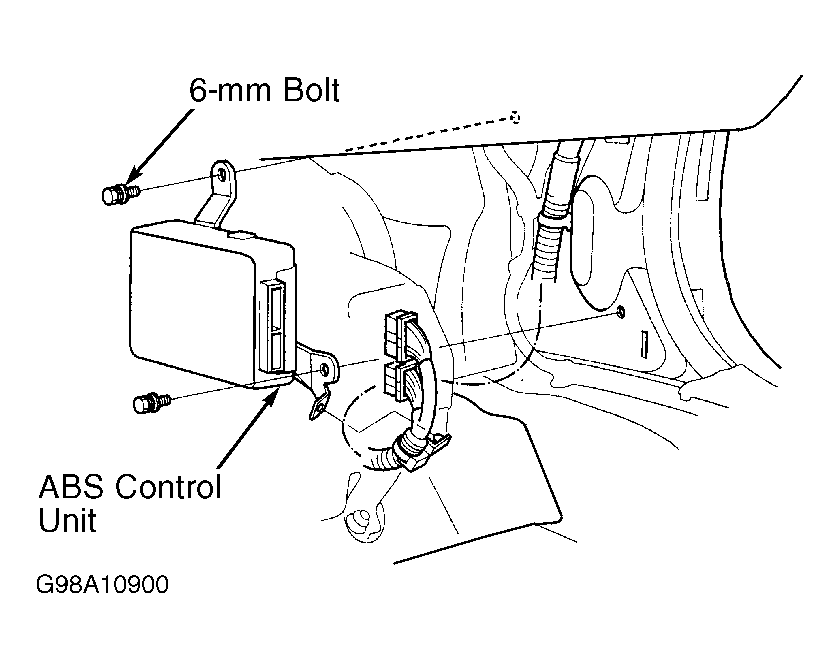

Connect ABS control unit connectors. Install ABS control unit into kick panel area. See Fig 1 . Install right kick panel. After installation, perform ABS FUNCTION TEST under DIAGNOSIS & TESTING.
