Master Switch

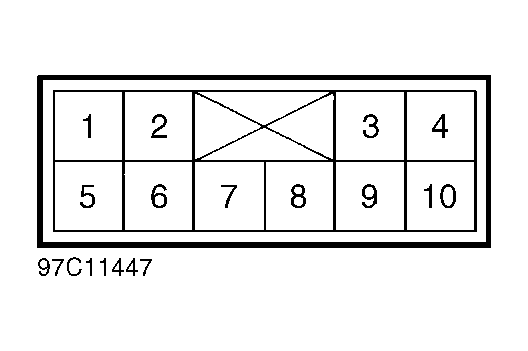

Remove power window master switch. See MASTER WINDOW SWITCH under REMOVAL & INSTALLATION. Check for continuity between specified switch terminals with switch in specified position. See POWER WINDOW MASTER SWITCH TEST table. See Fig 1 . If continuity is not as specified, replace switch.
| Window Switch Position | Main Switch Position | Continuity Between Terminals No. | |||
|---|---|---|---|---|---|
| Right Front Switch | |||||
| Off | On | 2, 3 & 4 | |||
| Off | Off | 3 & 4 | |||
| Up | On | 2 & 3; 4 & 5 | |||
| Up | Off | 4 & 5 | |||
| Down | On | 2 & 4; 3 & 5 | |||
| Down | Off | 3 & 5 | |||
|
|||||
