Power Window Key-Off Timer Test

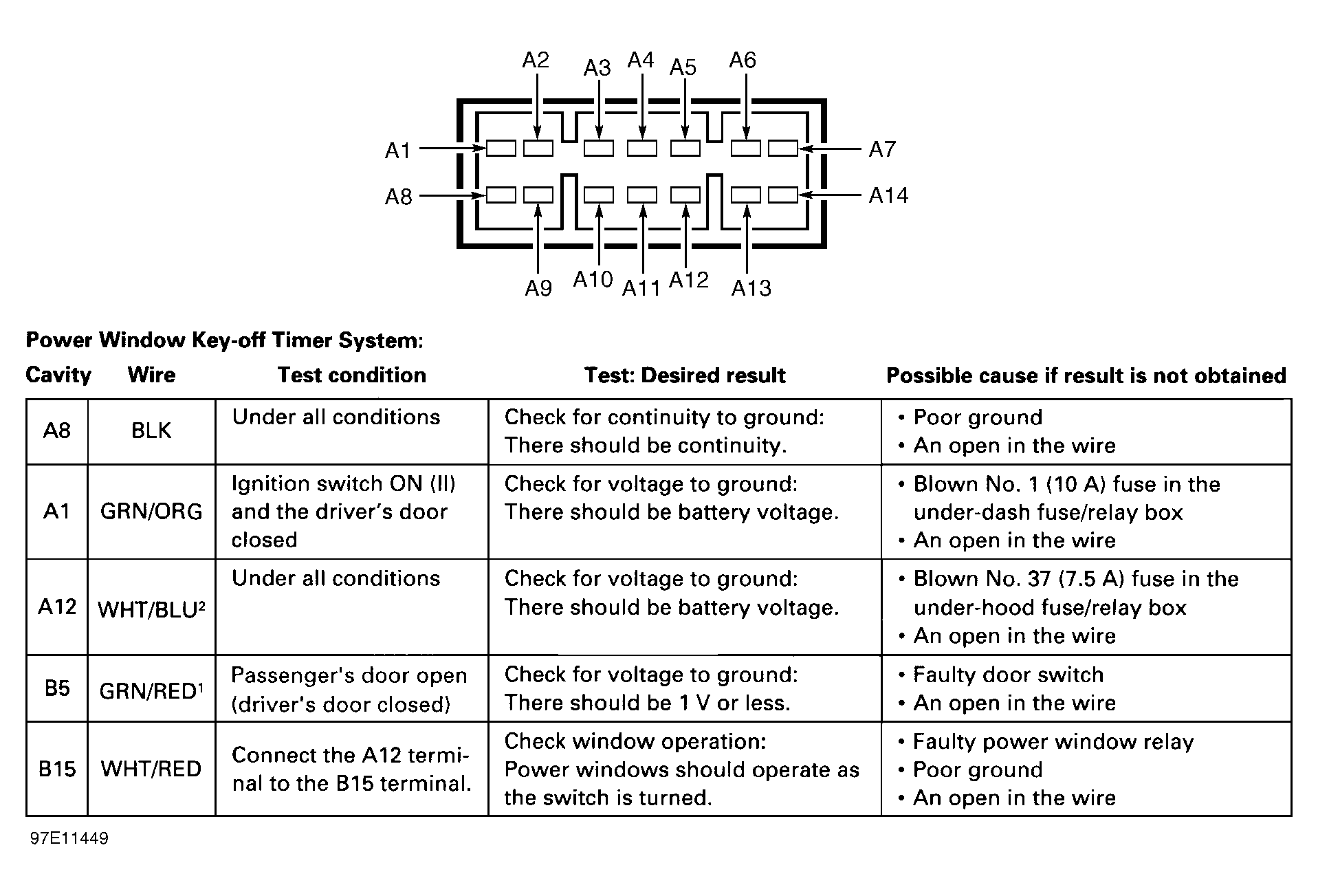

Remove integrated control unit from underdash fuse/relay box. Test each circuit of integrated control unit connector for continuity or voltage as indicated. See Fig 1 . Correct any problems found. If no problems are found, replace integrated control unit.
