1996 Acura 3.5RLFACTORY OEM SERVICE PROCEDURE

Door Multiplex Control Unit

  1. Remove driver's door trim panel enough to gain access to door multiplex control unit connector. See DOOR TRIM PANELΒ  under REMOVAL & INSTALLATION. Turn ignition off. Disconnect door multiplex control unit Blue 20-pin connector. See Fig 1 . Ensure connector terminals are okay and making proper contact. Repair connector terminals as necessary and retest system. If connector terminals are okay, go to next step.
  2. Using a voltmeter, probe between door multiplex control unit Blue 20-pin connector terminal No. 1 (White/Yellow wire) and ground. See Fig 1 . See DOOR MULTIPLEX CONTROL UNIT CONNECTOR TERMINALΒ  IDENTIFICATION table. If battery voltage exists, go to next step. If battery voltage does not exist, check fuse No. 56 (7.5-amp), located in fuse/relay box, under instrument panel. If fuse is okay, check for open in White/Yellow wire.
  3. Turn ignition on. Using a voltmeter, probe between door multiplex control unit Blue 20-pin connector terminal No. 2 (Green/White wire) and ground. If battery voltage exists, go to next step. If battery voltage does not exist, check fuse No. 17 (20-amp), located in fuse/relay box, under instrument panel. If fuse is okay, check for open in Green/White wire.
  4. Turn ignition off. Using an ohmmeter, probe between door multiplex control unit Blue 20-pin connector terminals No. 12 (Black wire) and No. 19 (Black wire) and ground. If continuity does not exist, check for an open in Black wire and/or bad ground connection. If wires and ground connections are okay, replace power window master switch.

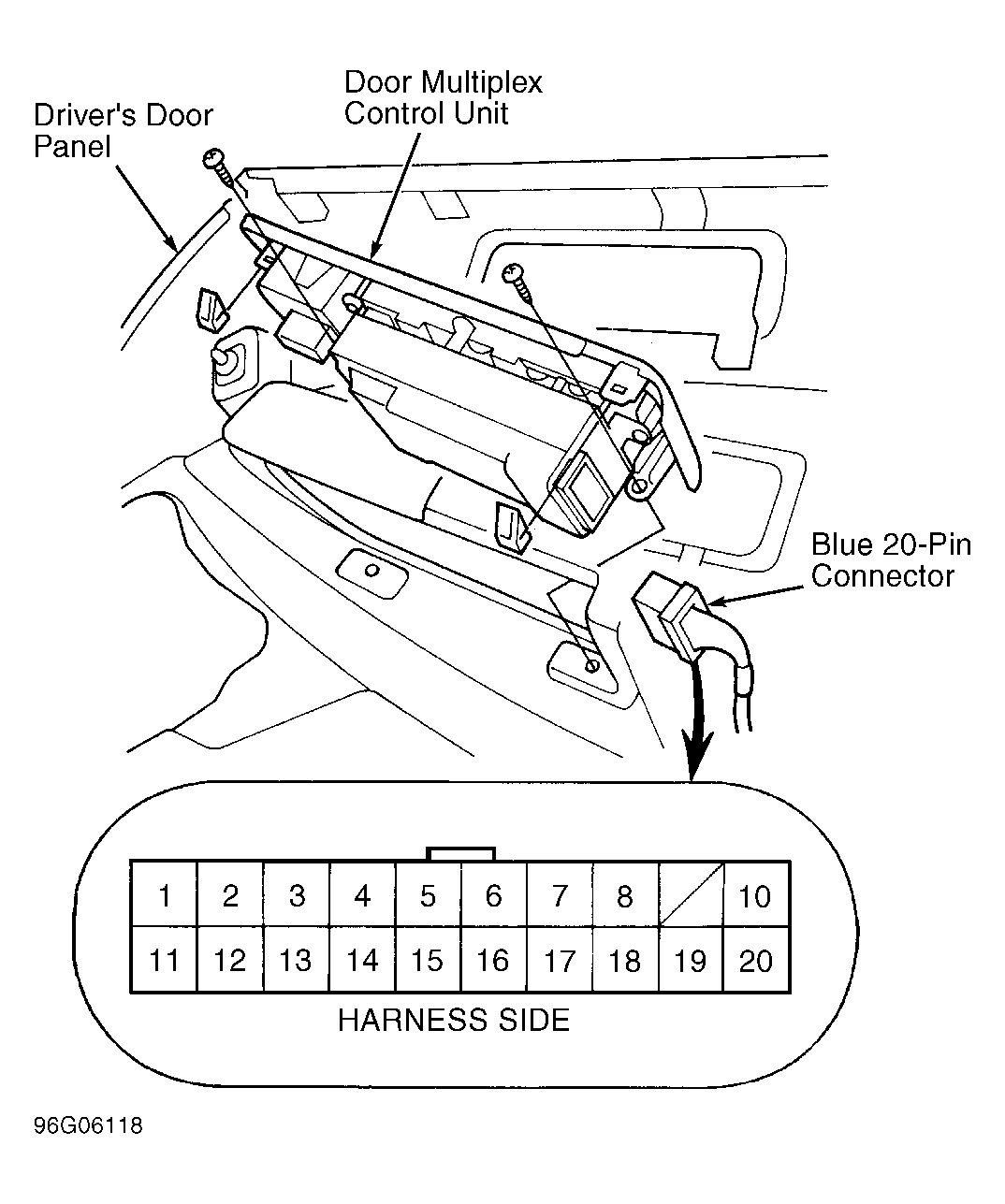

Fig 1: Locating Door Multiplex Control Unit Connector Terminals
G96G06118Courtesy of AMERICA HONDA MOTOR CO., INC.
DOOR MULTIPLEX CONTROL UNIT CONNECTOR TERMINAL ID

Terminal (Wire Color) (1) Circuit
1 (WHT/YEL) Battery Voltage Input
2 (GRN/WHT) Power Window Relay Input
3 (RED/BLK) Master Switch Light - Power
4 (BLU) Window Motor Pulse Input
5 (GRN/BLU) Door Switch Input
6 (GRN/WHT) Key Cylinder Switch UNLOCK
7 (BLU/WHT) Knob Switch LOCK
8 (GRN/RED) Lock Switch UNLOCK
10 (RED/BLU) Window Motor Control
11 (RED/YEL) Window Motor Control
12 (BLK) Ground
13 (RED) Master Switch Light GROUND
14 (BLU/BLK) Trunk Opener Switch Input
15 (BRN/YEL) Door "D" Line
16 (GRN/RED) Key Cylinder Switch LOCK
17 (GRN/BLK) Knob Switch UNLOCK
18 (GRN/WHT) Lock Switch LOCK
19 (BLK) Ground
20 (GRY/BLK) Main Switch Output
(1) Blue 20-pin connector. Terminals not listed are not used.
