1996 Acura 2.5TLFACTORY OEM SERVICE PROCEDURE

Driver's Power Window Master Switch Test

NOTE: Driver's power window switch is integrated with control unit and cannot be isolated for testing. Perform driver's master power window switch input tests No. 1, 2, 3 and 7. See Fig 3 . If inputs tests are normal and driver's power window switch does not operate properly, replace power window master switch assembly.

Remove power window master switch. Disconnect power window master switch connectors. SeeFigure and Fig 1 . Check continuity between specified terminals in each switch position. SeeFig 1 and Fig 2 . If continuity is not as specified, replace power window master switch.

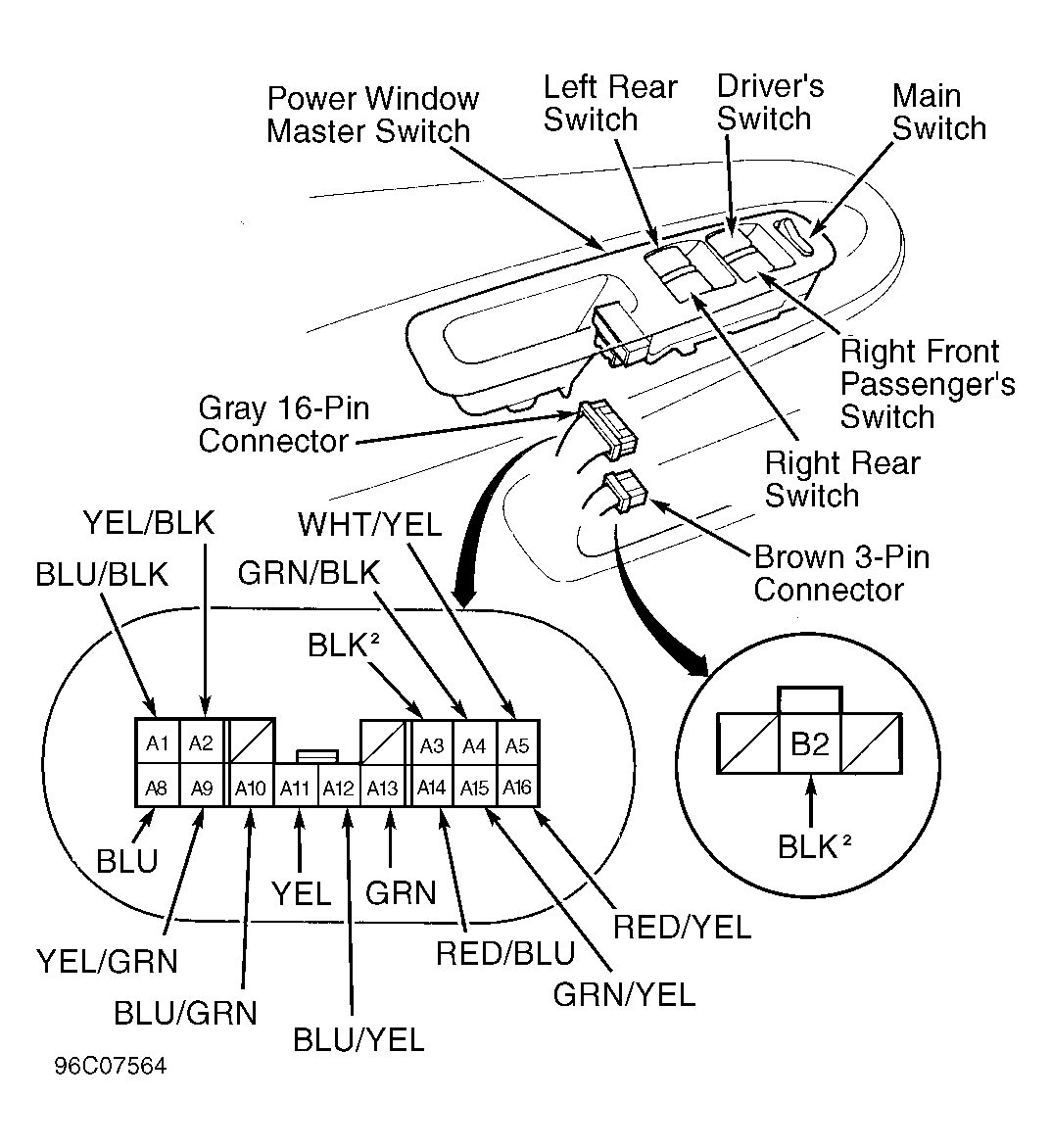

Fig 1: Locating Driver's Power Window Master Switch Connectors
G96C07564Courtesy of AMERICAN HONDA MOTOR CO., INC.
