1995 Acura NSX AutomaticFACTORY OEM SERVICE PROCEDURE
Fuel Injector Resistor: Testing

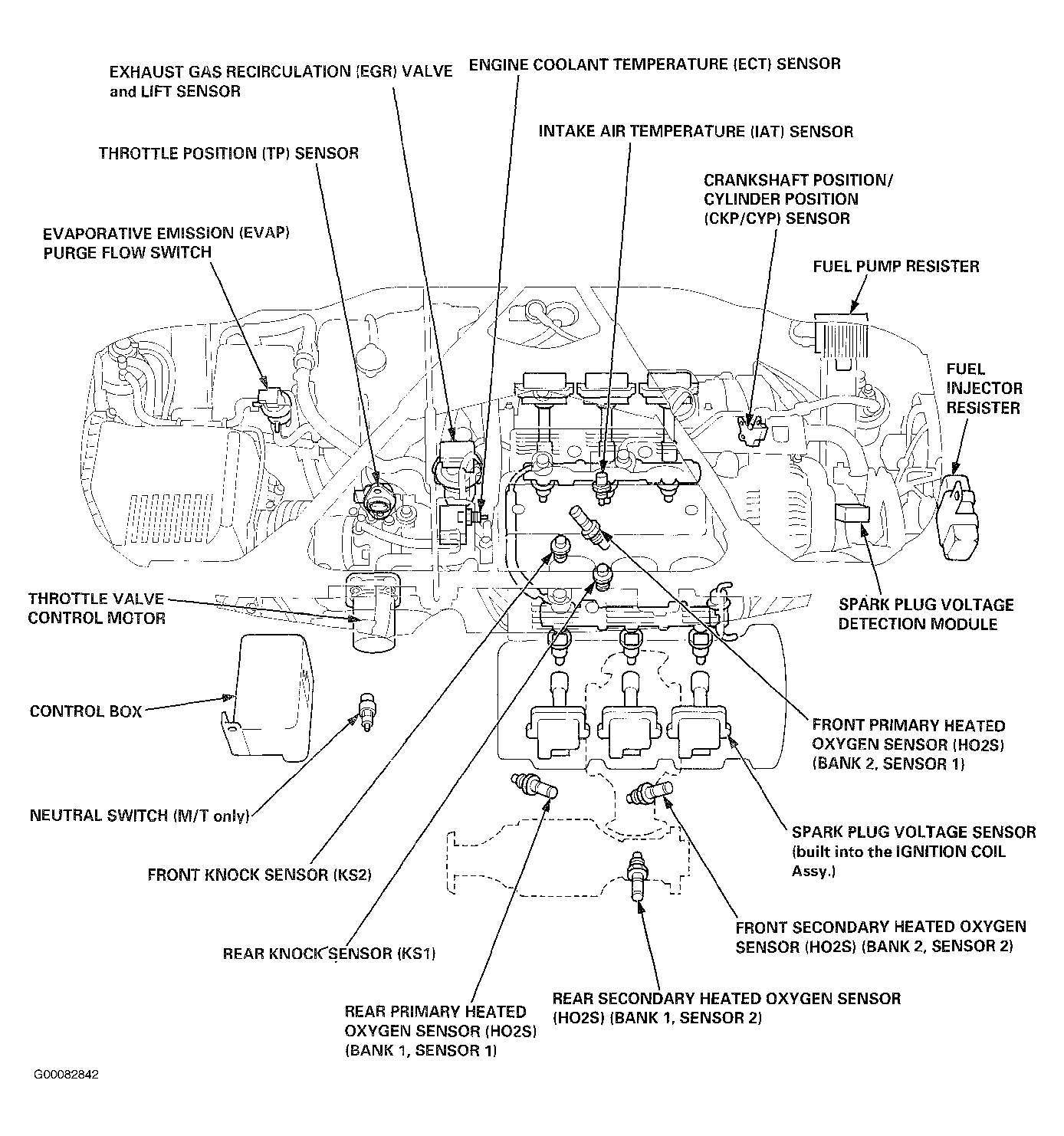

- Disconnect the fuel injector resistor connector. See Fig 1 and Fig 2 .
- Check for resistance between each of the fuel injector resistor terminal Nos. 2, 3, 4, 6, 7 and 8 and the power terminal No. 5.
- Resistance should be 5-7 ohms.
- Replace the fuel injector resistor with a new one if any of the resistances are outside of the specification.
