1995 Acura Integra GS-R, 2D CoupeFACTORY OEM SERVICE PROCEDURE
Checking Ignition Timing

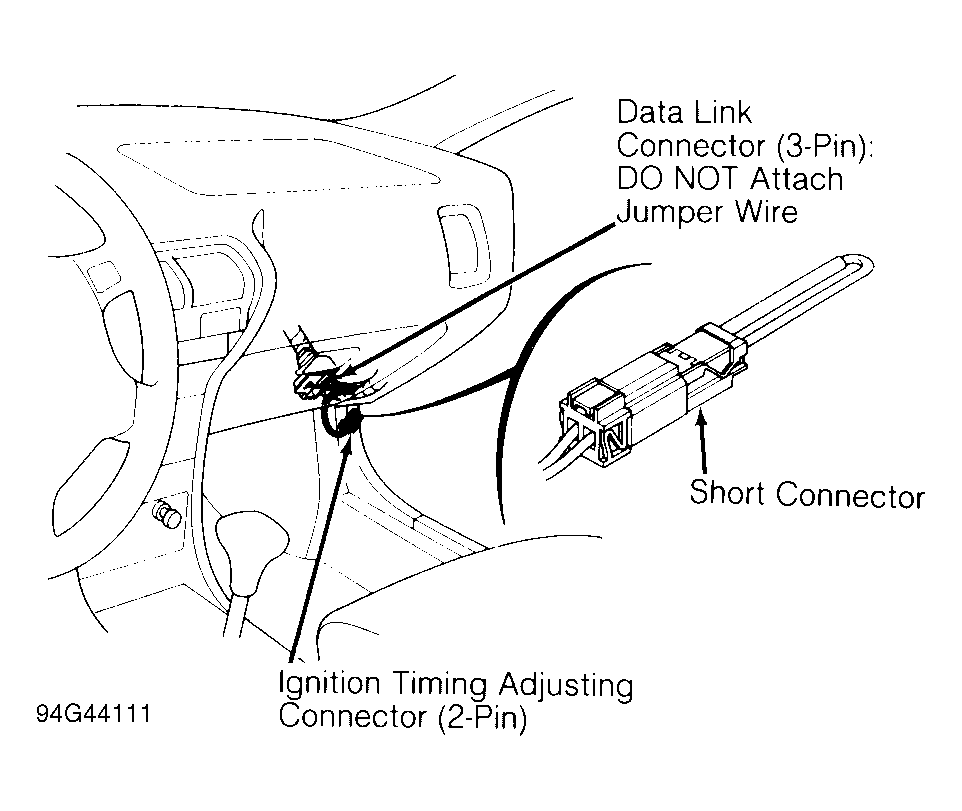

- Operate engine until cooling fan comes on. Locate Ignition Timing Adjusting connector (2-pin). Connector is located under right kick panel. Using Short Connector (07PAZ-010100 ), connect terminals of ignition timing adjuster connector together. See Fig 1 .
- Red mark on crankshaft pulley should align with pointer. See Fig 2 . If Red mark and pointer are not aligned, adjust base ignition timing by turning distributor. See IGNITION TIMING . Remove short connector from ignition timing adjusting connector.
