1995 Acura Integra (GS-R) L4-1797cc 1.8L DOHC (VTEC)FACTORY OEM SERVICE PROCEDURE
Engine Assembly

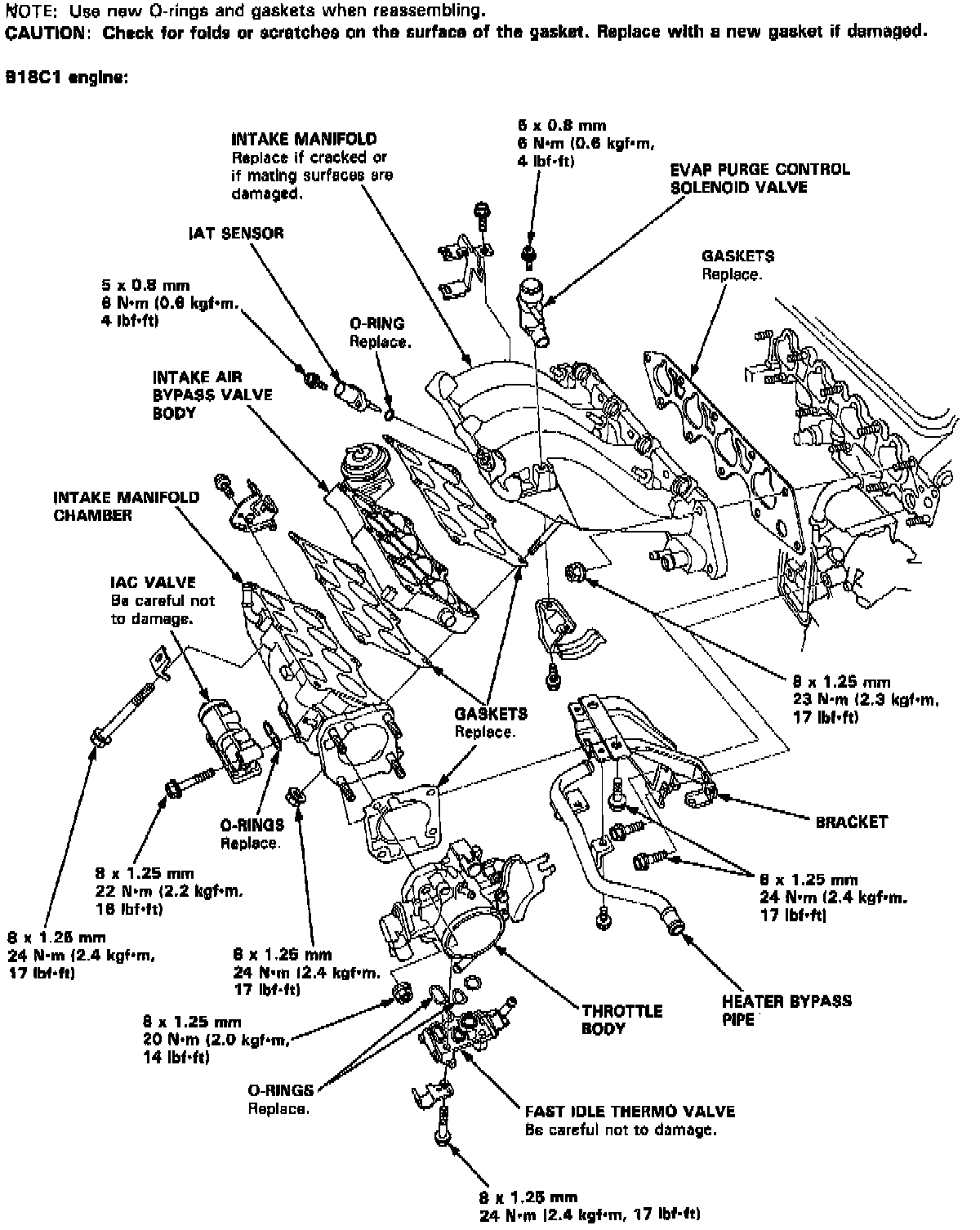

Intake:
Exhaust Manifold:

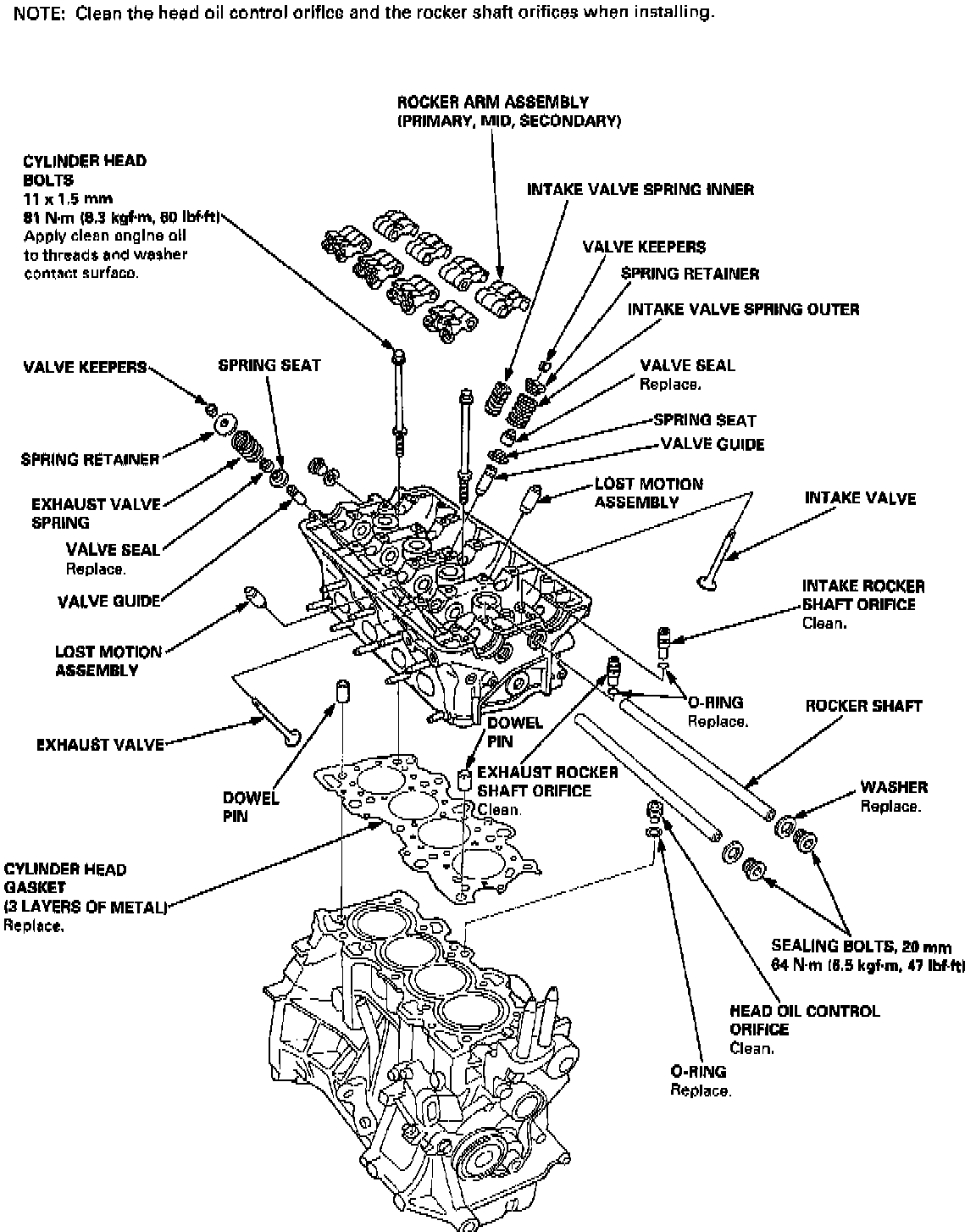

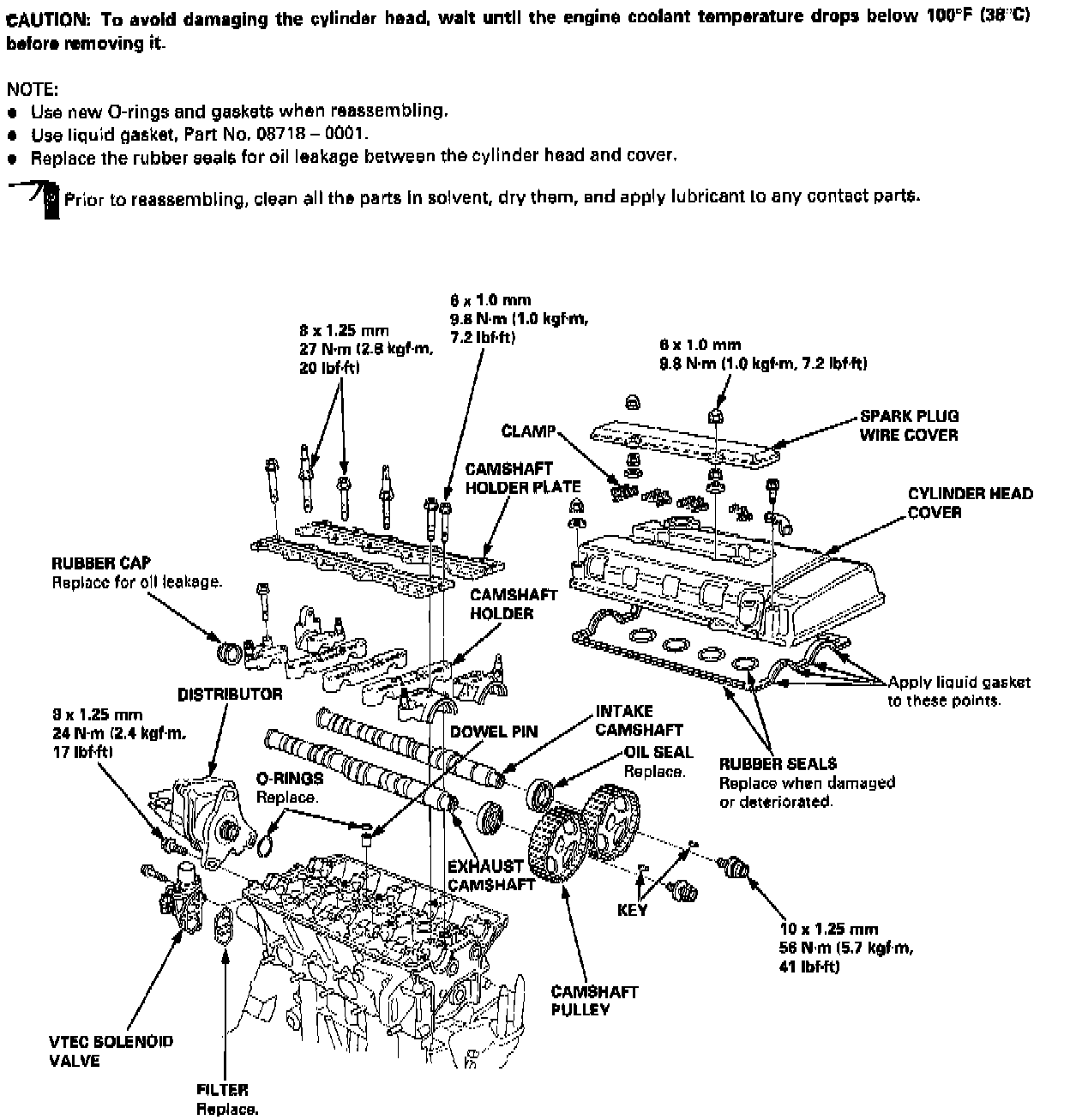

Upper Engine:

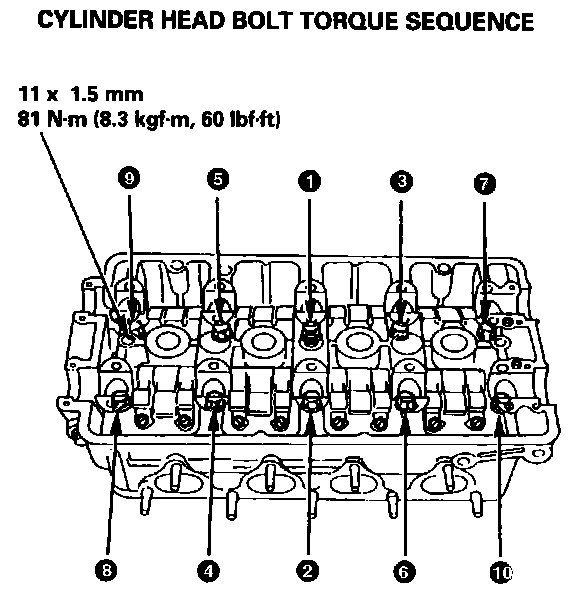

Tighten head bolts, in sequence, in two steps:
1st step: Tighten to 30 N.m (3.0 kg-m, 22 lb.ft)
2nd step: Tighten to 81 N.m (8.3 kg-m, 60 lb.ft)

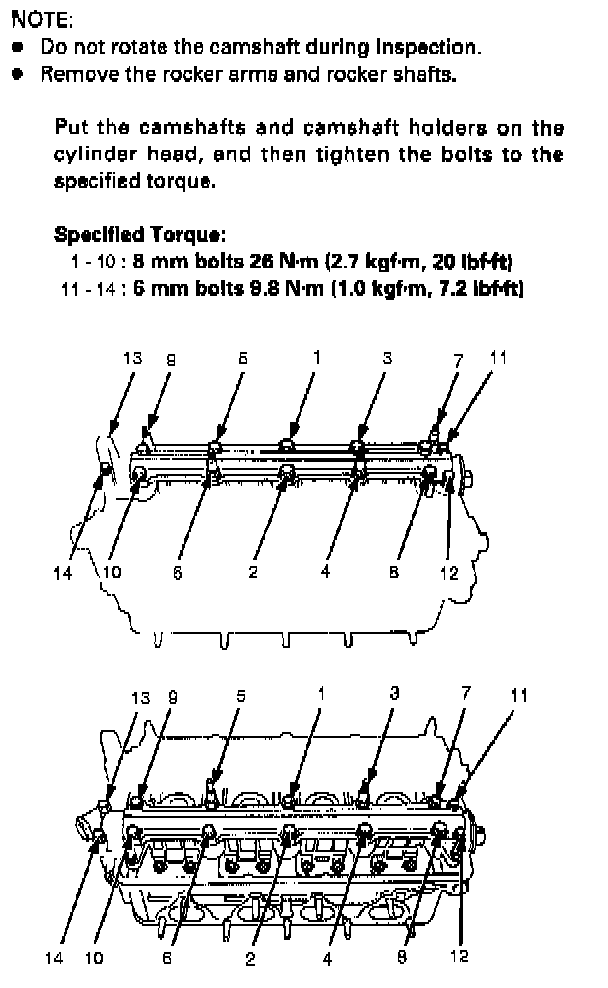

Timing Components:
Water Pump:
Lower Engine:
Main Bearing Torque/Sequence:
Engine Lubrication:
Flywheel (M/T) Torque/Sequence:
Drive Plate (A/T) Torque/Sequence:
