1994 Acura NSX AutomaticFACTORY OEM SERVICE PROCEDURE

Component Locations

For component locations, see Fig 1 -Fig 7 . For connector terminal identification and wire color identification, see Figure -Figure under CONNECTOR IDENTIFICATION.

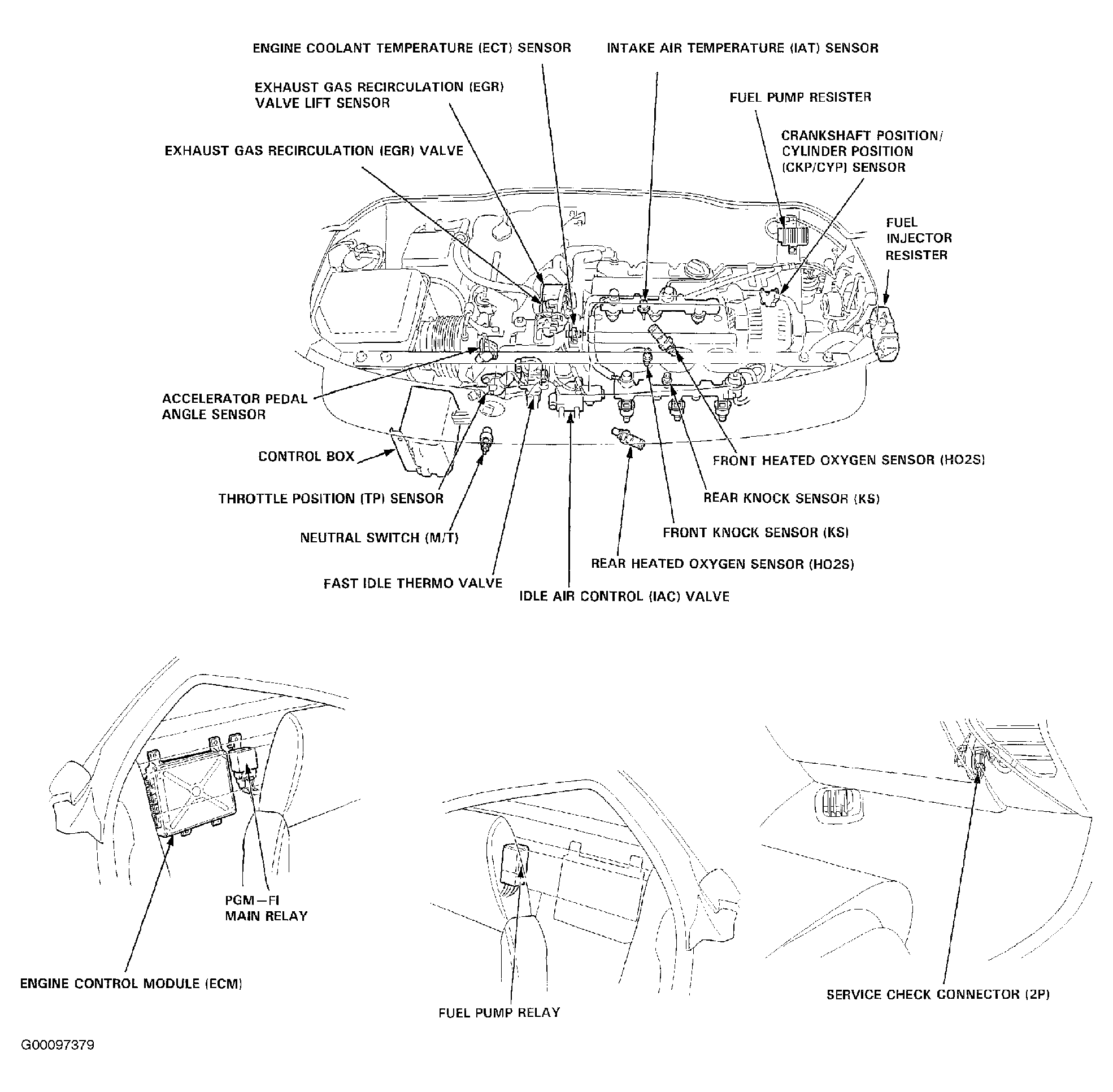

Fig 1: Locating PGM-FI Components (1 Of 5)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
