1993 Acura Vigor LS, AutomaticFACTORY OEM SERVICE PROCEDURE

Code 12: EGR System

  1. Turn ignition off. Remove BACK-UP fuse (10-amp) from underhood fuse/relay box for 10 seconds to reset ECM. Warm engine until cooling fan comes on. Road test vehicle for about 10 minutes, keeping engine speed about 1700-2500 RPM. Check ECM for fault codes. If Code 12 is not present, problem is intermittent. Check for poor connections at ECM, control box, EGR valve position sensor and wire harness connectors. Test drive vehicle and retest.
  2. If Code 12 is present, start engine. Disconnect No. 1 hose from EGR valve. See Fig 1 . Connect vacuum gauge to hose. If no vacuum is present, go to step 4. If vacuum is present, disconnect 4-pin connector from control box. Check vacuum again on No. 1 hose. If vacuum is present, check vacuum hose routing. If routing is okay, replace EGR control solenoid valve.

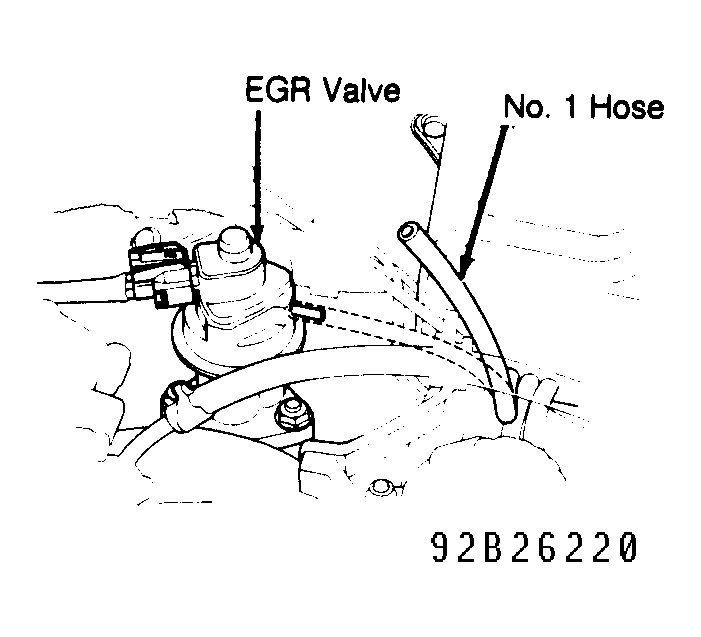

    Fig 1: Identifying EGR No. 1 Hose
    G92B26220Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. If vacuum is not present, turn ignition off. Remove connector "A" from ECM. Using an ohmmeter, check for continuity between Red wire terminal of control box connector and ground. If continuity is present, repair short in Red wire between EGR control solenoid valve and ECM connector terminal A11. If continuity is not present, replace ECM and retest.
  4. If vacuum was not present during first vacuum test in step 2, install vacuum pump on EGR valve vacuum port. With engine idling, apply 6 in. Hg to EGR valve. If engine does not stall or run rough or EGR valve does not hold vacuum, replace EGR valve.
  5. If engine stalls or runs rough and EGR valve holds vacuum, turn ignition off and disconnect 4-pin connector from control box, located on firewall, behind intake manifold. Turn ignition on. Measure voltage between Black/Yellow wire terminal and body ground. If battery voltage is not present, repair open in Black/Yellow wire between solenoid valve and ECM fuse (No. 2, 15-amp) located in underdash fuse box. If battery voltage is present, install "T" fitting into No. 1 hose.
  6. Attach vacuum gauge to "T" fitting. Start engine, and allow it to idle. Connect battery voltage to terminal "B" of 4-pin connector. See Fig 2 . While observing vacuum gauge, connect terminal "D" to negative battery terminal.
  7. If gauge reads 6 in. Hg within one second, go to step 9. If gauge does not read 6 in. Hg within one second, turn ignition off. Inspect EGR hoses for leaks, restrictions and misrouting. Repair as necessary. If hoses are okay, disconnect lower hose on EGR control solenoid valve.
  8. Connect vacuum gauge to disconnected hose. Start engine, and allow it to idle. If about 6 in. Hg is not present, replace Constant Vacuum Control (CVC) valve. See Fig 3 . If about 6 in. Hg is present, replace EGR control solenoid valve. See Fig 3 .

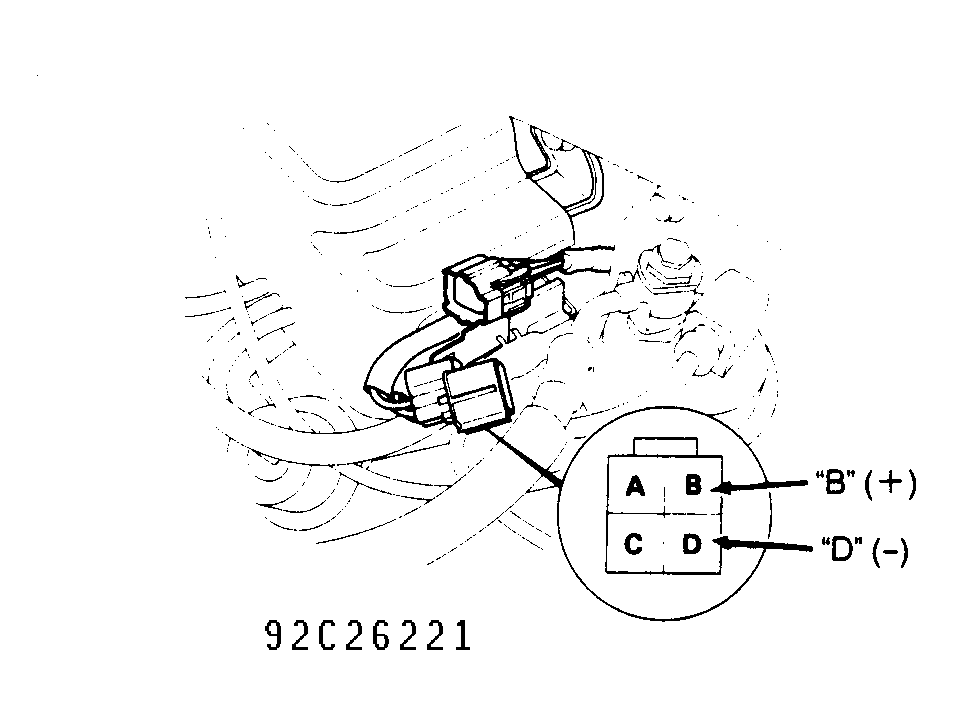

    Fig 2: Identifying Control Box Connector Terminals
    G92C26221Courtesy of AMERICAN HONDA MOTOR CO., INC.
