1993 Acura Integra GS-RFACTORY OEM SERVICE PROCEDURE
Rack Guide

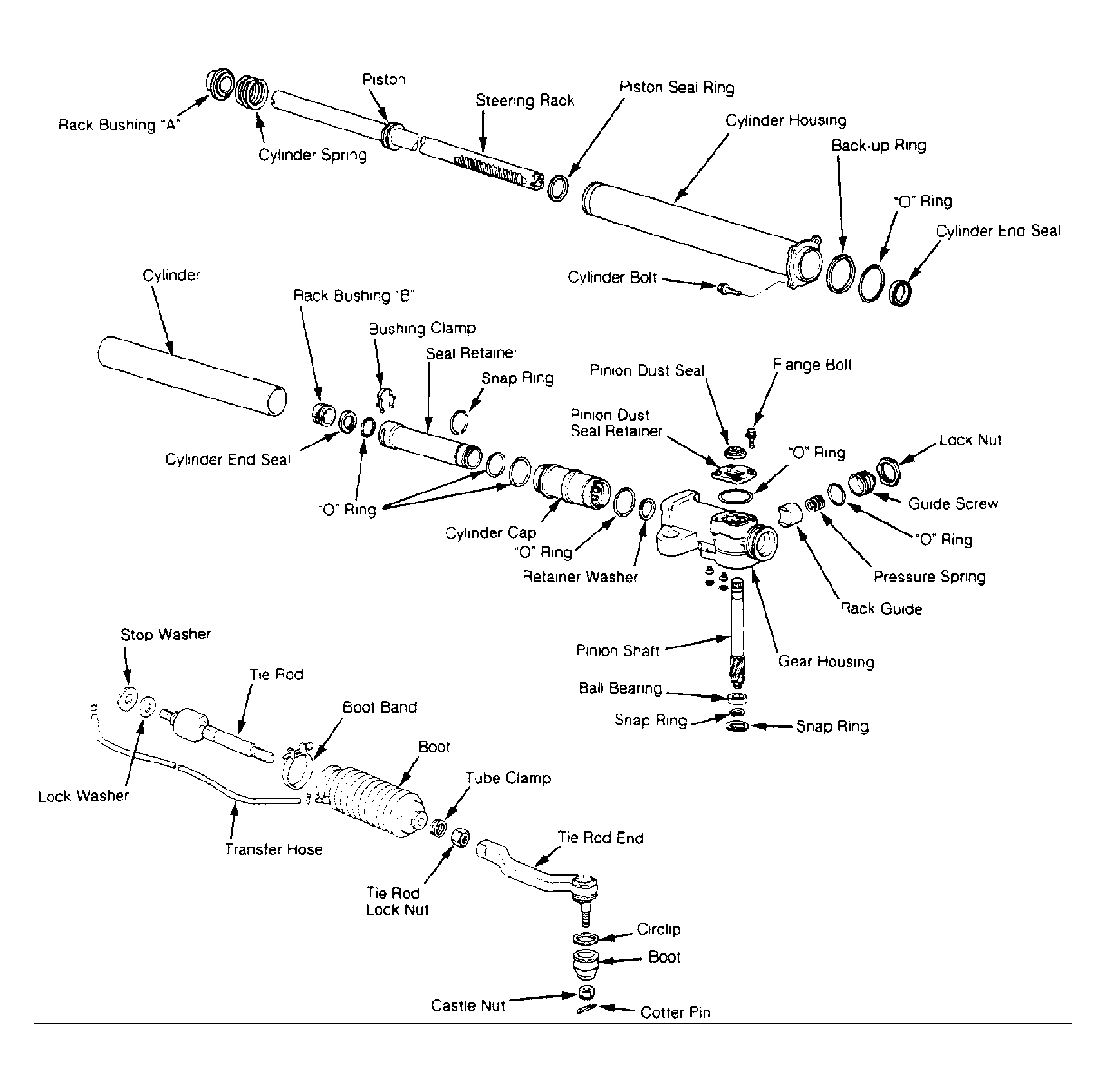

- Using Lock Nut Wrench (07916-SA50001), loosen rack guide screw lock nut. See Fig 1 . Tighten rack guide screw until spring is compressed against guide.
- Loosen rack guide screw, and retighten it to 36 INCH lbs. (4 N.m). Back off rack guide screw about 25 degrees. Holding rack guide screw in place, tighten lock nut to 18 ft. lbs. (24 N.m). Measure steering effort. See STEERING WHEEL TURNING FORCE under TESTING.
