VTEC Pressure Switch Torque Specification (ASN 0795-06)
Reference number: ASN 0795-06
VTEC PRESSURE SWITCH TORQUE SPECIFICATION
TECHNICAL SERVICE BULLETIN
VTEC PRESSURE SWITCH TORQUE SPEC
Model(s): Acura NSX & Integra
Group: Specifications
Bulletin No.: ASN 0795-06
Date: July, 1995
SERVICE INFORMATION

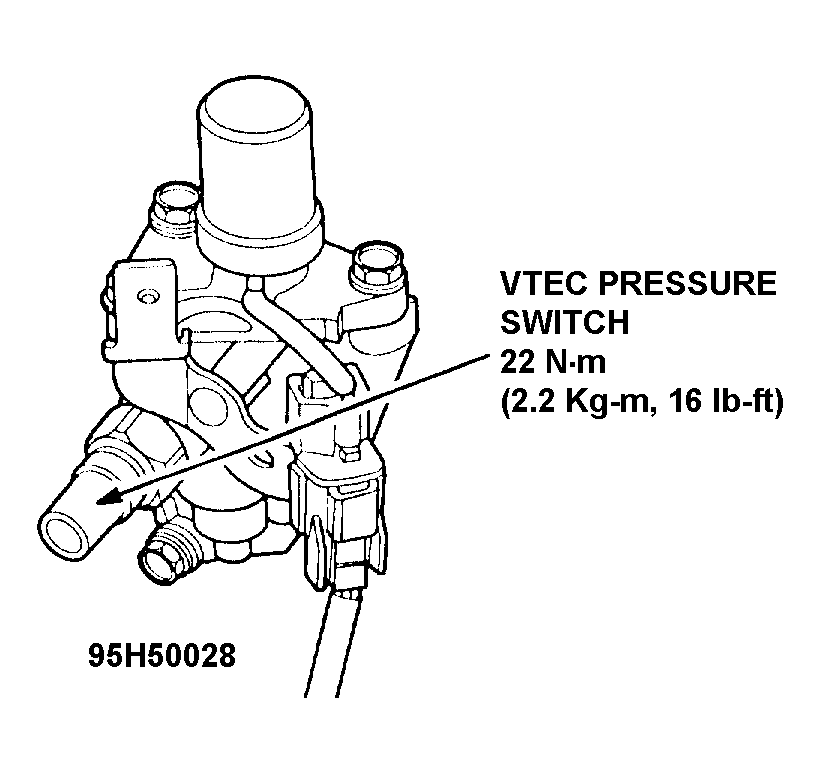

After all these years, we finally realized that neither the Integra or NSX S/M list a torque specification for the VTEC pressure switch. The spec is: 22 N.m (2.2 kg.m, 16 lb-ft), and a good place to note the spec is on the VTEC Pressure Switch (DTC 22) Troubleshooting Flow Chart in section 6. See Fig 1 .
