Passenger Window Motor Test

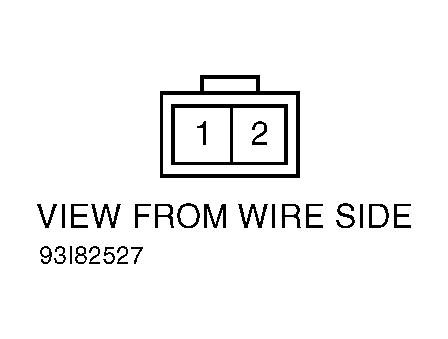

Remove door panel. Unplug connector from motor. Using fused jumper wire, connect terminal No. 2 to battery voltage. Connect terminal No. 1 to ground. See Fig 1 . Motor should run in "up" direction. Transpose jumper wires. Motor should run in "down" direction. retest. Replace motor if it does not operate in both directions.
