1993 Acura Integra GS-RFACTORY OEM SERVICE PROCEDURE
Control Unit Input Test
- Turn ignition off. Remove dashboard lower left cover. Remove left knee bolster. Cruise control unit is located near left kick panel. Unplug cruise control unit 14-pin connector.

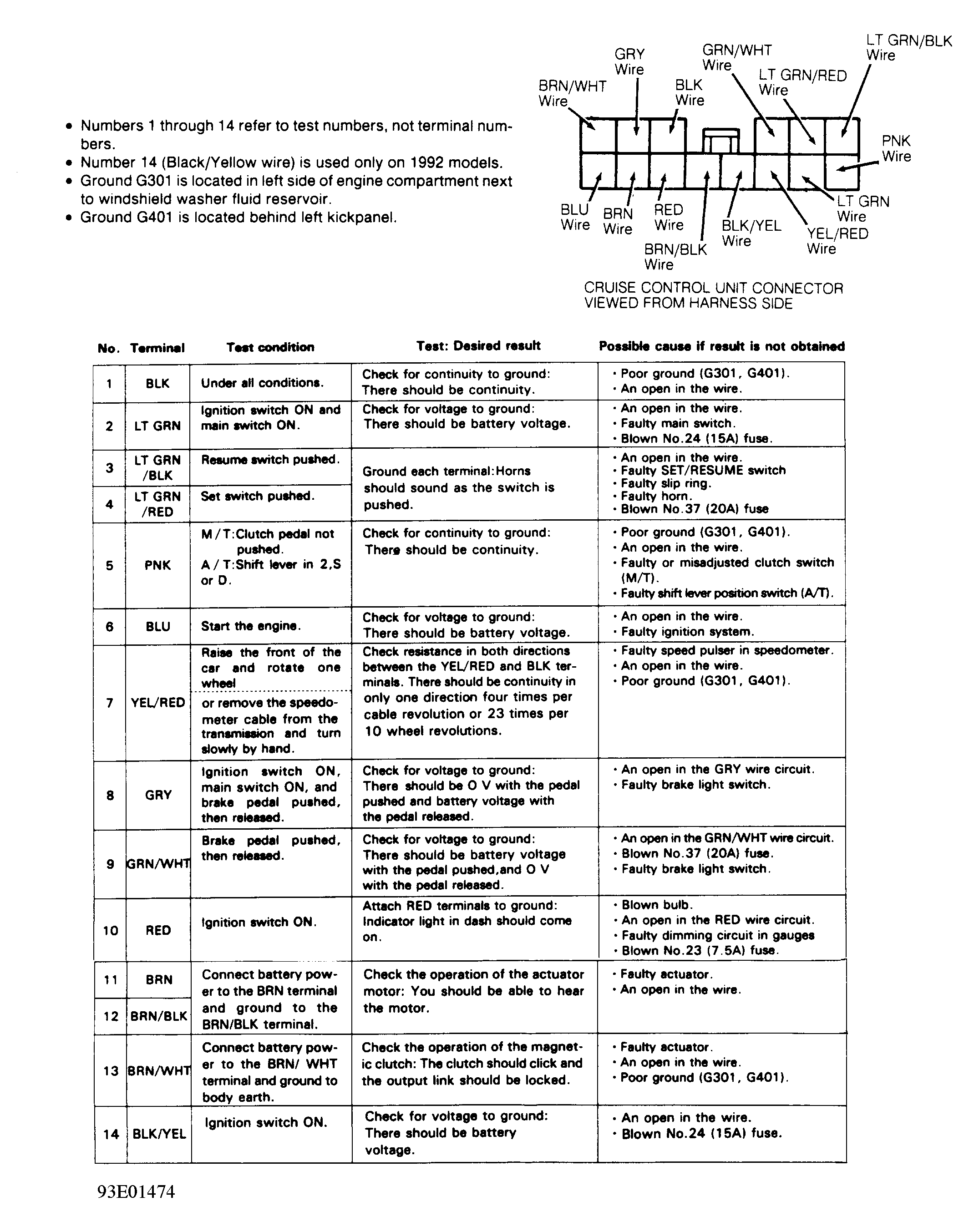

- Using a DVOM, perform cruise control unit input tests in Fig 1 . If all input test results are okay, inspect cruise control unit connector for damage and proper fit. If connector is okay and cruise control still malfunctions, replace cruise control unit.
