1993 Acura Integra GS-RFACTORY OEM SERVICE PROCEDURE
Ignition Key Switch

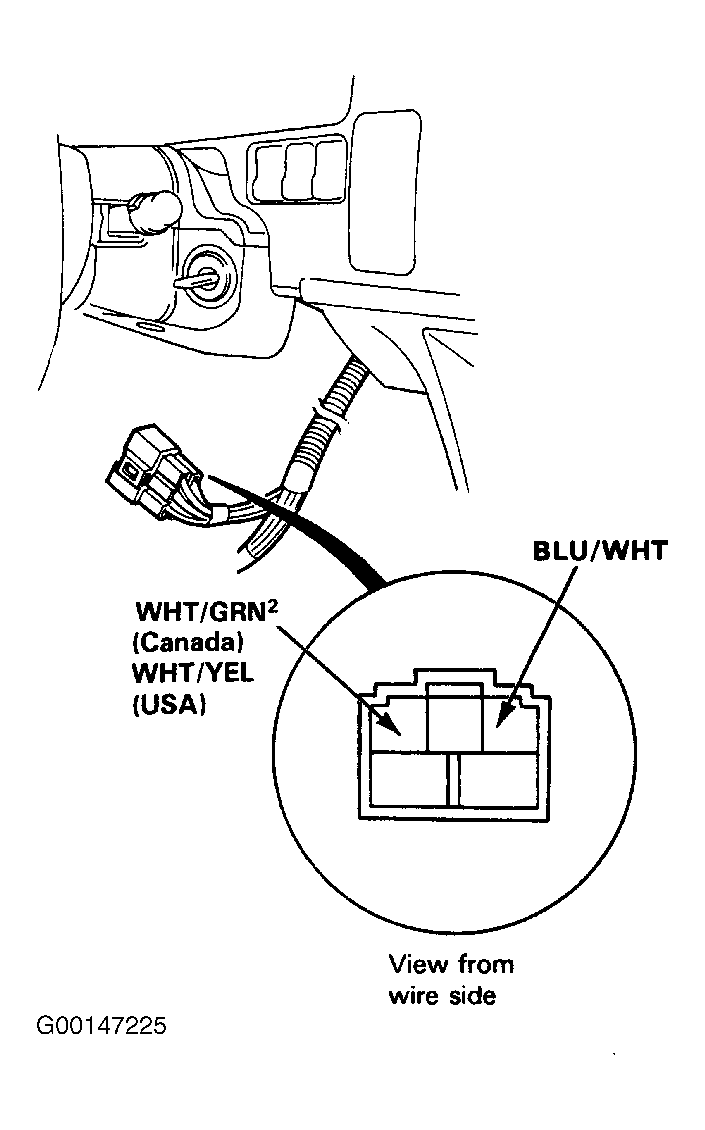

- Remove the dashboard lower panel and left knee bolster, then disconnect the 5-P connector from the main wire harness. See Fig 1 .
- There should be continuity between the BLU/WHT and WHT/GRN terminals when the ignition switch is turned from "I" to "O" position. There should be no continuity when the ignition key is removed.
