1993 Acura Integra GS-RFACTORY OEM SERVICE PROCEDURE
Component Tests: Chime

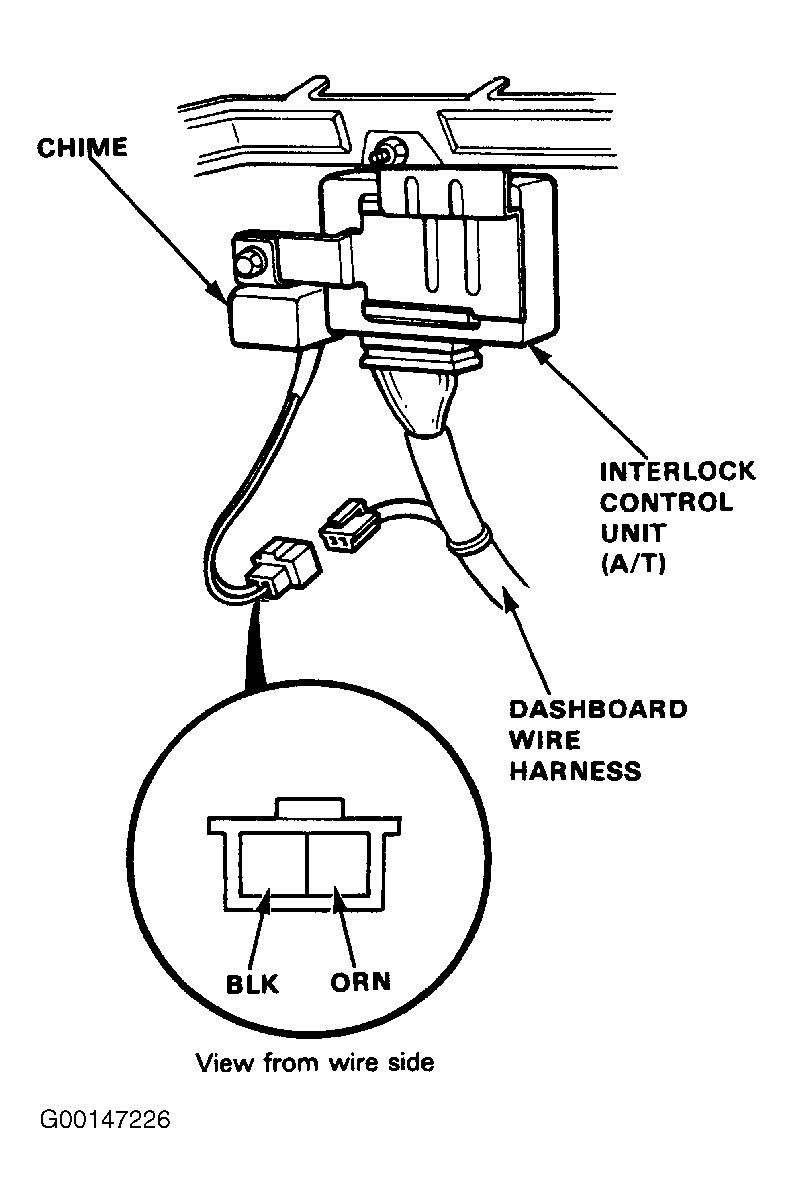

- Remove the front console to disconnect the 2-P connector from the dashboard wire harness. See Fig 1 .
- Test chime operation by connecting battery positive to the ORN terminal, and negative to the BLK terminal, and cycling the power on-off repeatedly.
- If the chime fails to sound every time power is cycled, replace it.
