1993 Acura Integra GS-RFACTORY OEM SERVICE PROCEDURE
Brake Fluid Level Switch
- Remove the reservoir cap. Check that the float moves up and down freely. Replace reservoir cap if the float does not move freely.

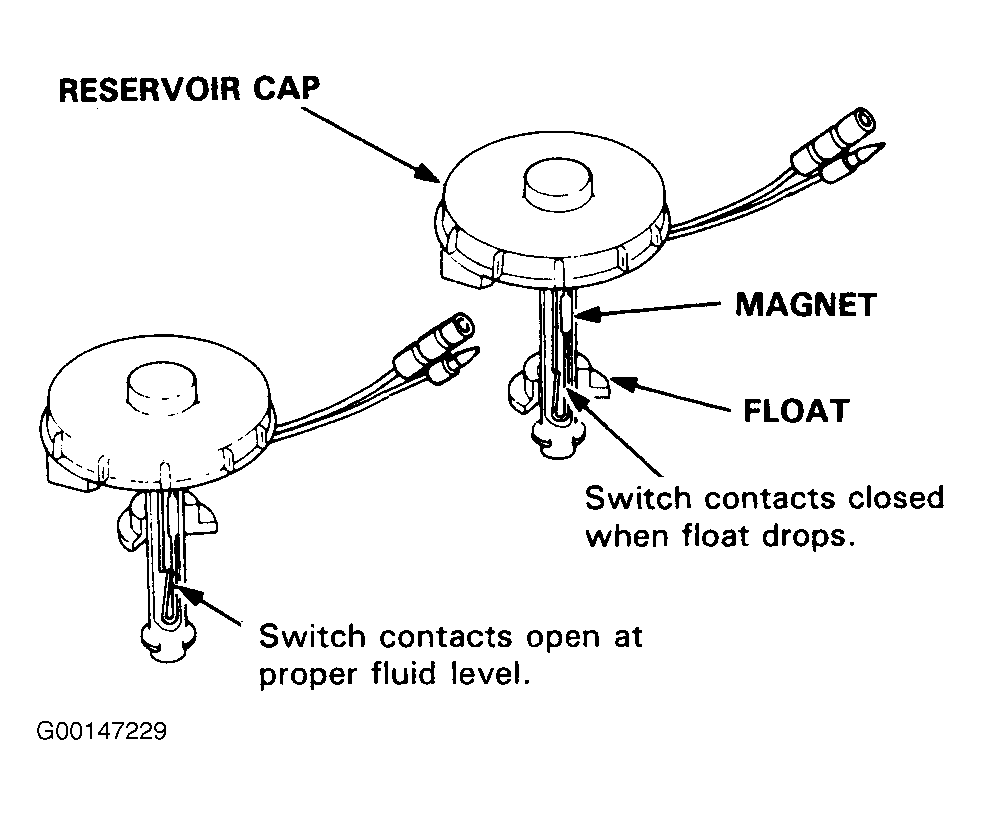

- Check for continuity between the terminals with the float up and down. There should be continuity with the float down, and no continuity with the float up. Replace the reservoir cap if necessary. See Fig 1 .
