1993 Acura Integra GS-RFACTORY OEM SERVICE PROCEDURE
Component Locations
COMPONENT LOCATIONS
| Component | Location |
|---|---|
| Chime Module | Behind Center Of Dash |

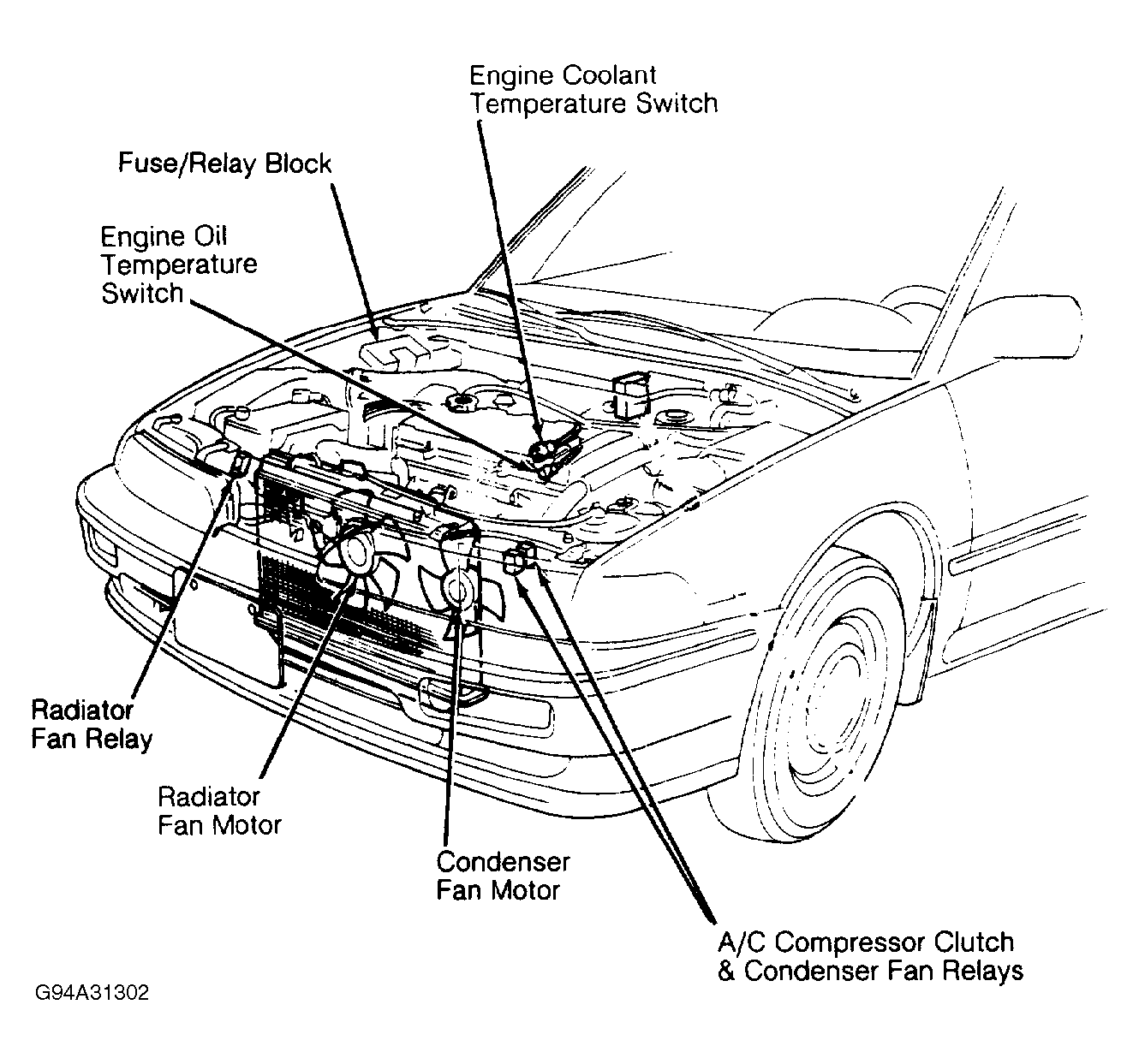

| Engine Compartment Fuse/Relay Block | Right Rear Corner Of Engine Compartment, On Strut Tower. See Fig 1 . |
| Engine Oil Pressure Switch | Near Oil Filter |
| Integrated Control Unit | On Rear Of Passenger Compartment Fuse/Relay Block. See Fig 2 . |
| Parking Brake Switch | On Base Of Parking Brake Lever |
| Passenger Compartment Fuse/Relay Block | Behind Left Kick Panel. See Fig 2 . |
| Seat Belt Switch | In Driver's Seat Belt Buckle |
| Windshield Wiper Intermittent Relay | Integral With Integrated Control Unit |
| C404 (6 GRN) | At Left Kick Panel, On Top Rear Of Under Dash Fuse/Relay Box |
| C405 (202 GRN) | At Left Kick Panel, On Top Rear Of Under Dash Fuse/Relay Box |
| C407 (12 RED) | At Left Kick Panel, On Top Rear Of Under Dash Fuse/Relay Box |
| C503 (8 GRN) | At Left Kick Panel, On Top Rear Of Under Dash Fuse/Relay Box |
| C553 (8 GRN) | At Left Kick Panel, On Top Rear Of Under Dash Fuse/Relay Box |
| C704 (18 GRN) | At Left Kick Panel, On Top Rear Of Under Dash Fuse/Relay Box |
| C926 (14 CAVITY) | On Integrated Control Unit |
| G201 | Under Right Headlamp |
| G301 | Left Front Corner Of Engine Compartment, On Inner Fender, Near Washer Reservoir |
| G401 | Behind Left Kick Panel, Near Door Opening |
