1993 Acura Integra GS-RFACTORY OEM SERVICE PROCEDURE
Control Unit Inputs
- Turn ignition off. Remove dashboard lower left cover. Remove left knee bolster. Power door lock control unit is located near left kick panel. Unplug power door lock unit 14-pin connector.

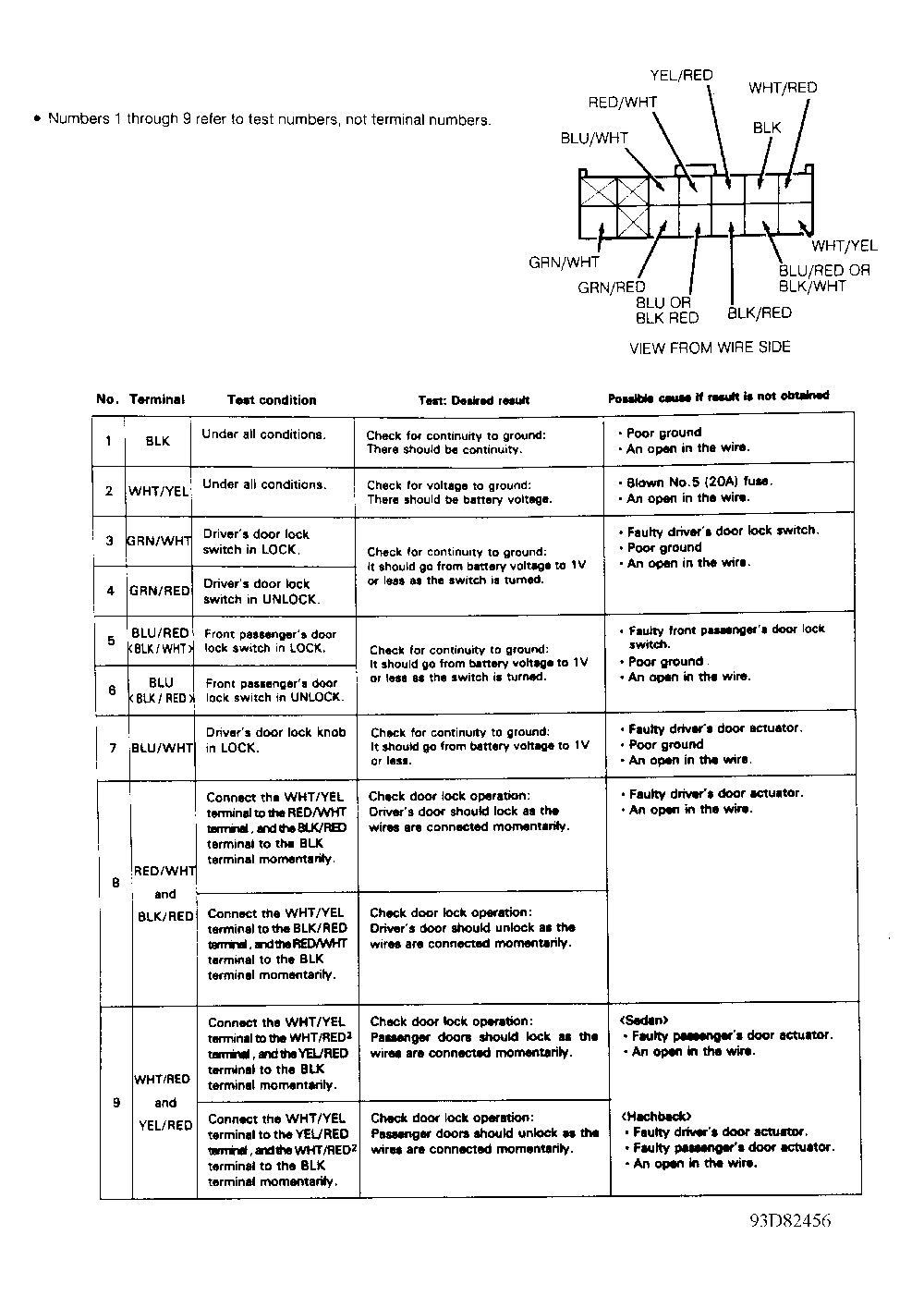

- Using a DVOM, perform power door lock unit input tests in Fig 1 . If all input test results are okay, inspect connector and terminals for damage and proper fit. If connector is okay and power door lock still malfunctions, replace power door lock control unit.
