1992 Acura Legend Base, AutomaticFACTORY OEM SERVICE PROCEDURE
Air Suction Control System

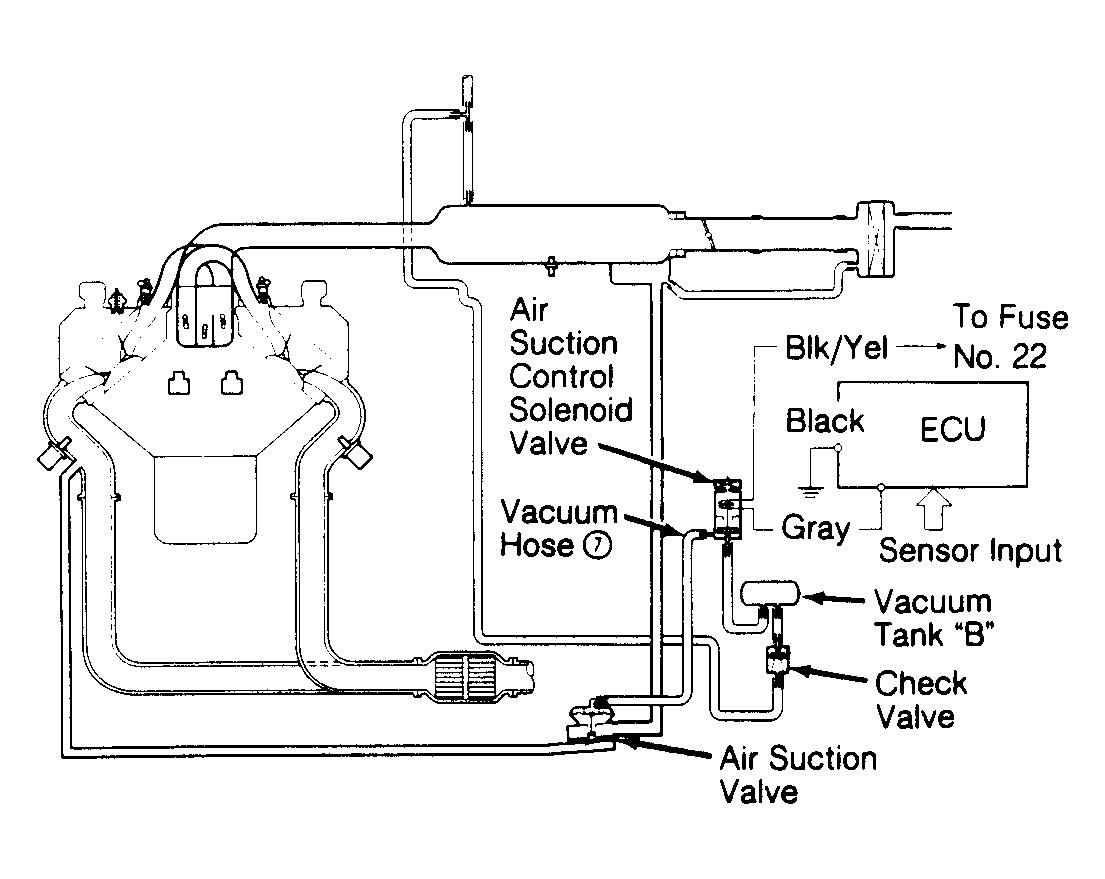

- Air suction valve is located at top rear of engine. Check all vacuum hose routing. Start and warm engine until cooling fan comes on. Disconnect vacuum hose No. 7 from air suction valve. See Fig 1 . Connect vacuum gauge to hose.
- If no vacuum is present, go to next step. If vacuum is present, disconnect 6-wire connector at air suction control solenoid, located at right front of engine compartment. See Fig 2 . If vacuum is still present, replace air suction control solenoid. If vacuum goes away, check for short in Gray wire between 6-pin connector and ECU terminal A17. If wire is okay, substitute a known good ECU and retest. If problem goes away, replace ECU.
