1992 Acura Legend Base, AutomaticFACTORY OEM SERVICE PROCEDURE
Ignition Timing: INTEGRA

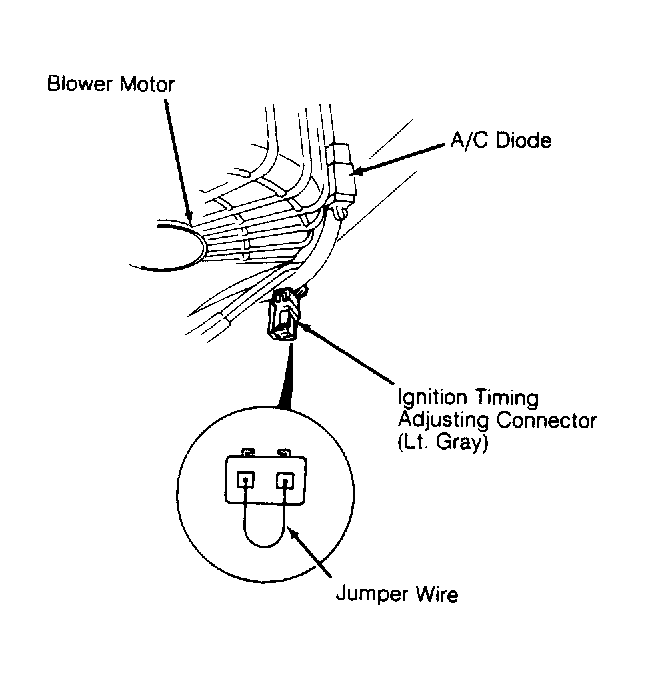

- Operate engine until cooling fan comes on. Locate Light Gray connector under right side of dash, next to blower motor. Connect terminals of ignition timing adjusting connector with jumper wire. See Fig 1 .
- Red mark on crankshaft pulley should align with pointer. See Fig 2 . If Red mark and pointer are not aligned, adjust base ignition timing by turning distributor. See IGNITION TIMING table. Remove jumper wire from ignition timing adjusting connector.
