1991 Acura Legend Base, AutomaticFACTORY OEM SERVICE PROCEDURE

Ignition Timing

  1. Operate engine until cooling fan comes on. Locate connector at right side (under dash). Connect terminals of ignition timing adjusting connector with a jumper wire. See Fig 1 .

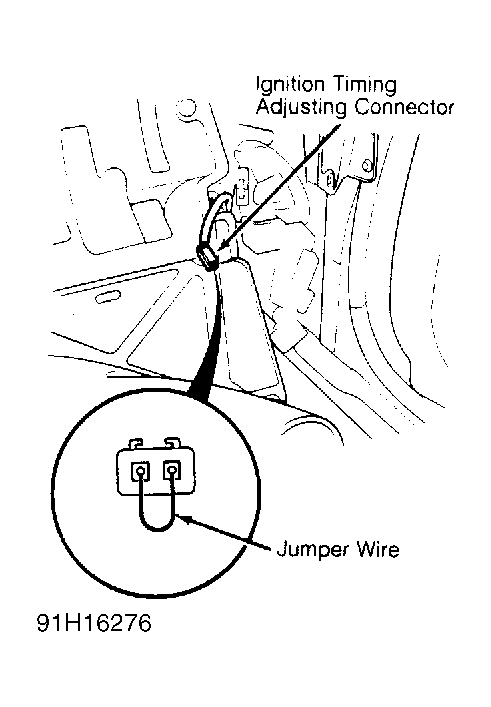

    Fig 1: Locating Ignition Timing Adjusting Connector
    G91H16276Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Connect timing light. With engine at idle, Red mark on crankshaft pulley should align with pointer. See Fig 2 . If Red mark and pointer are not aligned, adjust timing. See IGNITION TIMING  table.
  3. Adjust ignition timing by turning adjusting screw on ignition timing adjuster. See Fig 3 . Remove control box cover. Using a 3/16" drill bit, drill out 2 rivets from adjuster and remove cover.
  4. Turn adjusting screw counterclockwise to retard timing, or clockwise to advance timing. After adjustment, install cover to ignition timing adjuster with new rivets. Remove jumper wire from ignition timing adjusting connector.
    Fig 2: Locating Ignition Timing Marks
    G46500Courtesy of AMERICAN HONDA MOTOR CO., INC.
